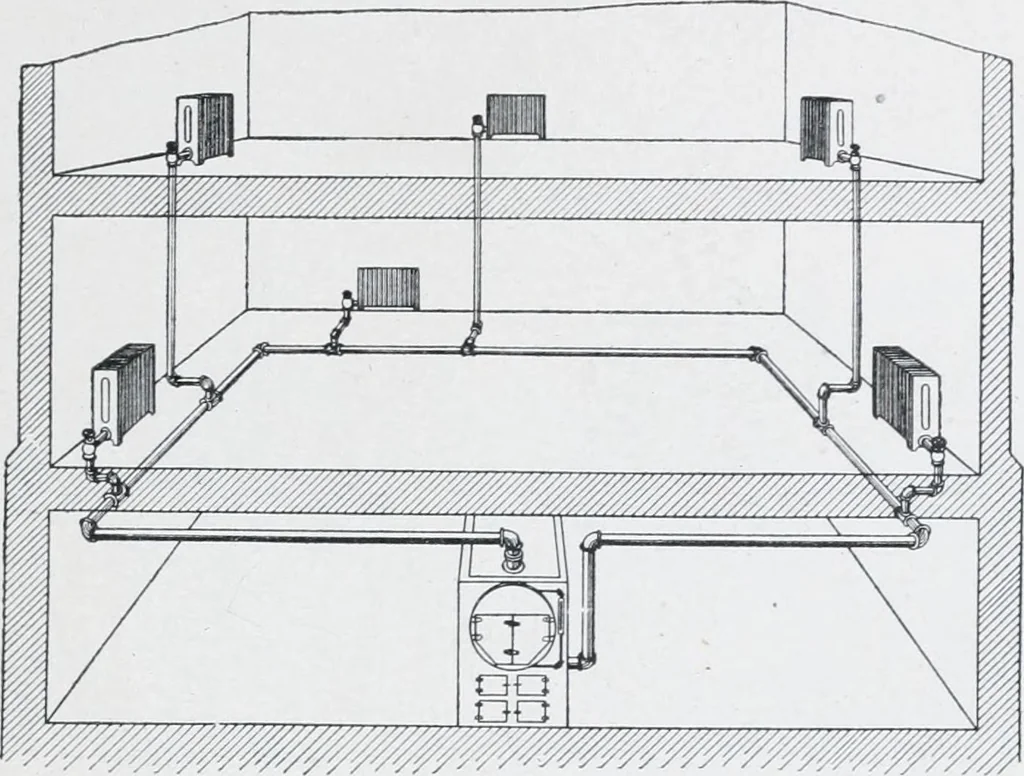

a Si BUILDING SUPERINTENDENCE 67 One=Pipe Circuit System. In this system the main supplyis carried to the ceiling of the cellar and there makes a completecircuit of the l^uilding- at a downward pitch and connects again withthe boiler below the water line. (Fig. 60.) From this circulation … Fig. 60. One-Pipe Circuit System. pipe single risers are taken to the radiators, and the condensationflows back through the same pipes to the circulation pipe, and iscarried along with the steam and returned to the boiler. This circu-lation pipe should be of large size and with a goofl pitch all…
