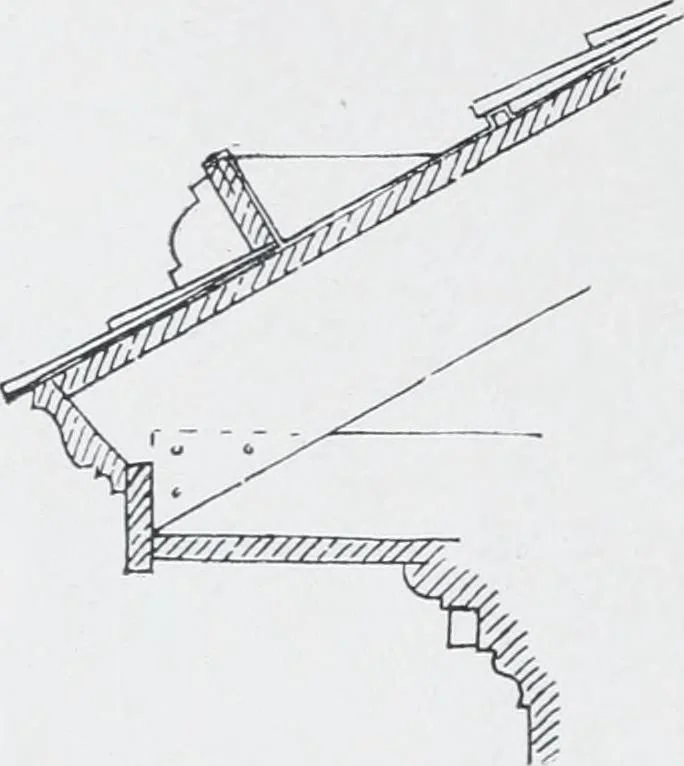

oard isused, shown in Fig. 101. Tliisconsists of a board surface set inthe angle of roof and wall, andgraded to the desired outletsAvhere conductors are placed in-side of the wall. Conductors. In the case ofthe inside conductors above re-ferred to, cast iron soil pipes may ^ig. 16I. Cant-Boai-a… … Fig- Ifitl- StaucUng Gutter on Koof.
