Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 64

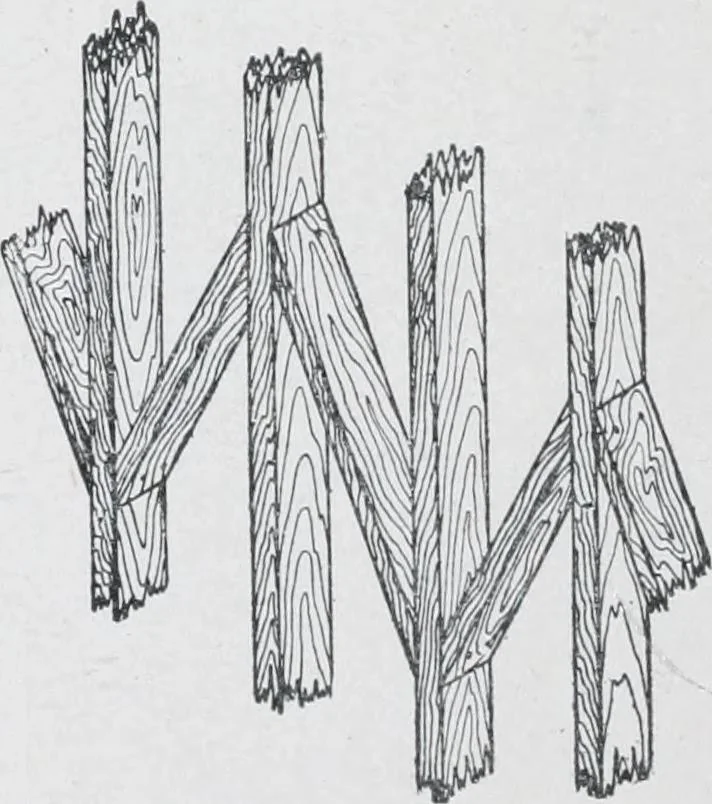

oon asthe roof is on and boarded, the gutterswill be put on and the roof shinglingbegun. The position of the guttersmust be carefully noted to be sure thatthe edge is on a line with the roofboarding, otherwise the gable finishwill not work out right. The positionof the conductors should be… … Fig. 33. Diagonal Bridging ofPartition. 46 BUILDING SUPERINTENDENCE 39 gling or slating of the roof can be commenced, and before the roofis completed the furring of the inside will be taken up. Furring. Beyond the setting of minor partitions which werenot needed for the support of floor beams, the…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
