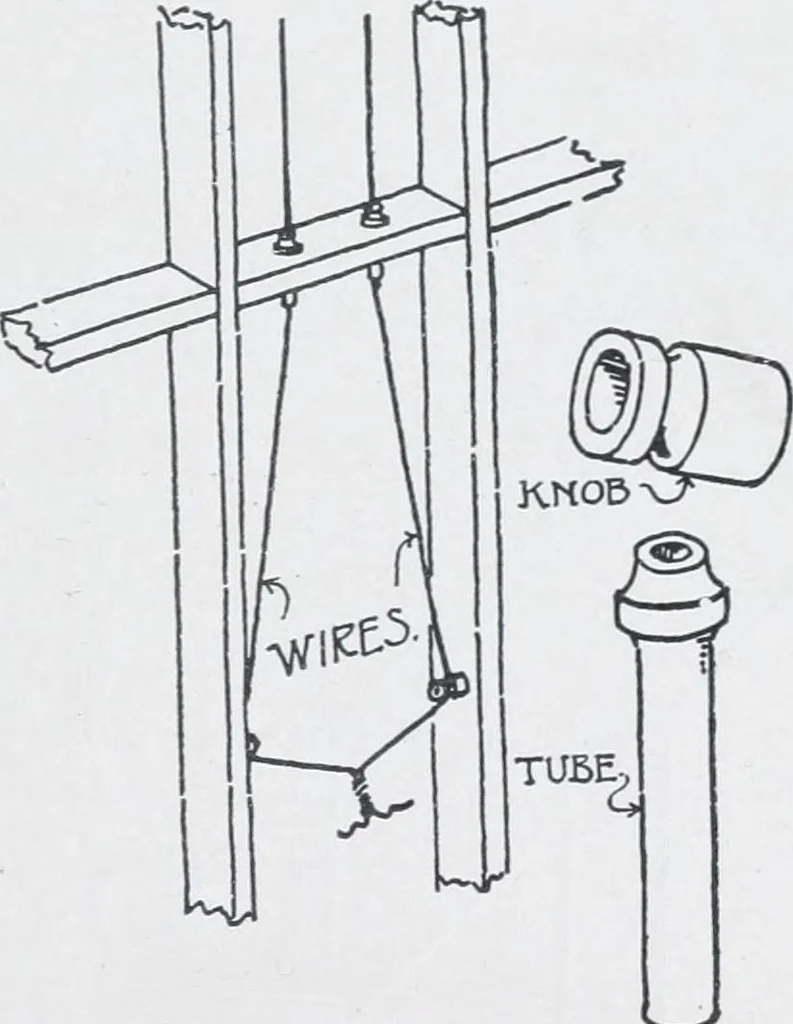

Theusual method is the knob and tube system, where the wires, of copper heavily insulated, are runbetween beams and studs on porcelain knobs, and in short porce-lain tubes where passing through timbers. (Fig. 35.) Although theinsurance exchanges, employ inspectors and require that every jobof… … Fig. 35. Electric Wiring. 49 42 BUILDING SUPERINTENDENCE apart to avoid any chance of contact, that they are not allowed tosag, and that the joints are properly protected by a free use of insu-lating tape. Upon brick or stone walls, and in all places wherethere is danger of injury, wires should be…
