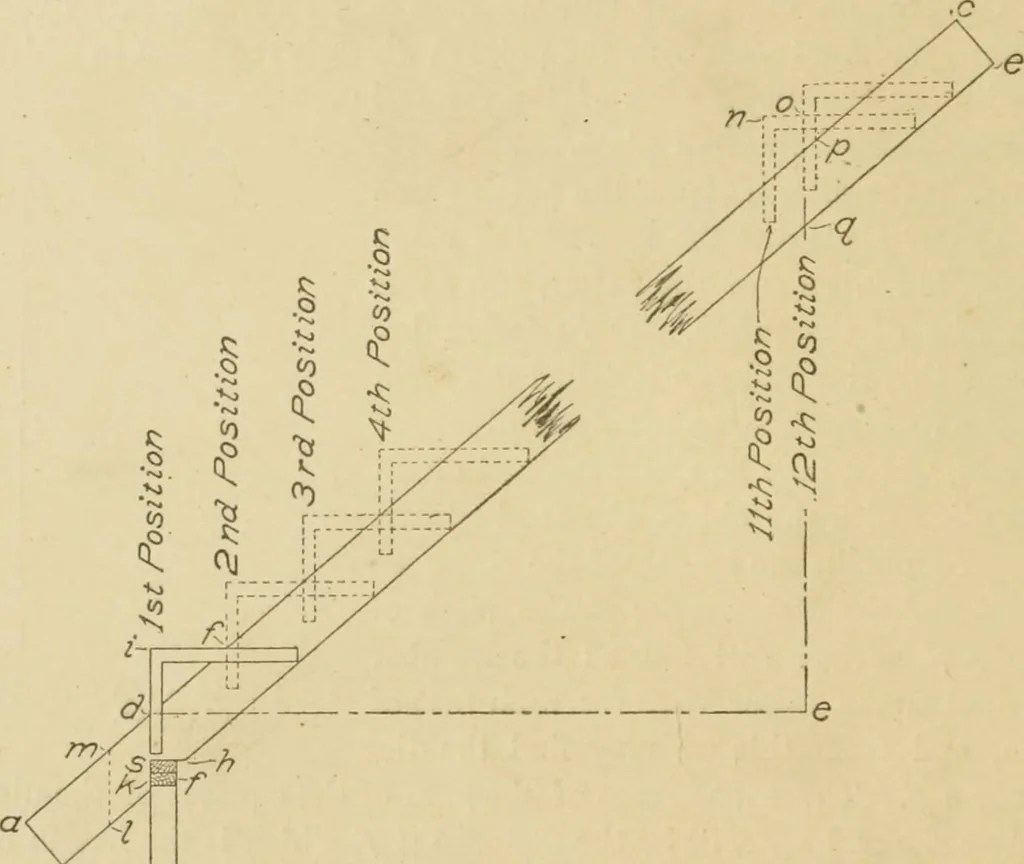

nd Elevationof Rafter. 90 CARPENTRY tongue at the point d and with the twelv^e-inch mark on the bladealso on this same edge of the rafter. The line d s h along; thetongue of the square is the line of the outside face of the wallplate, and if the rafter is not to project beyond the plate it shouldbe… … d m Fig. 150. Cutting Bevel at Top of Rafter. Now to cut the bevel at the top of the rafter. Let us supposethat the run, the distance d e in Fig. 150, is ten feet and threeinches. We will move the square along the edge of the rafter asindicated by the dotted lines eleven times, starting with the…
