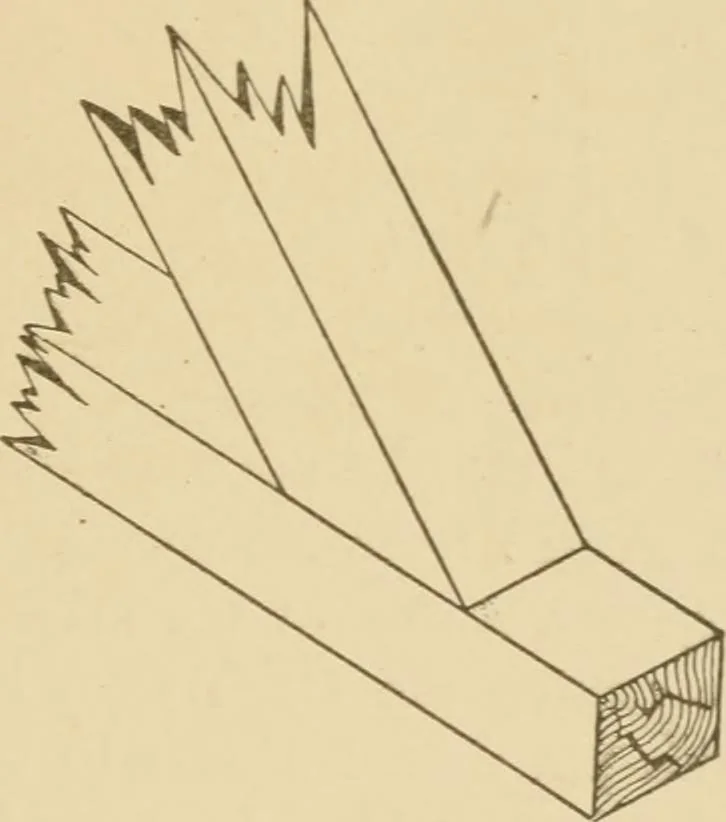

Fig. 24. Butt Joint. Fig. 25. Oblique Butt Joint. 25 shows two pieces which are not perpendicular to each other.They are trimmed to fit closely together, and are then nailed inplace. Such a joint is called an oblique butt joint. The buttjoint does not make a strong connection between the pieces,…
