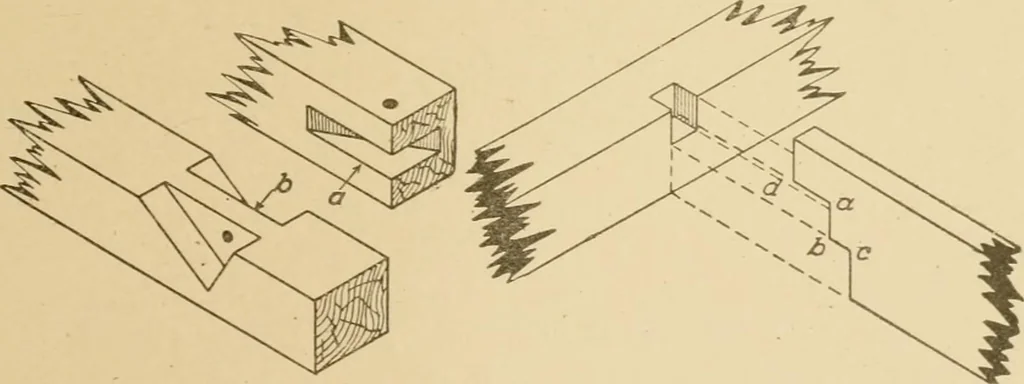

Fig. 27. Mortise-aud-Tenon Joint. Fig. 28. Bridge Joiut. direct compression, as in the case of posts or braces, or in certaincases where direct tension is the only force acting on the x^ieces.When bending and shearing are to be expected, as in the case of … Fig. 29. Bridge Joint. Fig. oO. Gained Joiut. floor beams connecting to sills or girders, a. slightly different sortof joint must be employed. . One of the most common joints for such places is a modifica-tion of the mortise-and-tenon joint which is known as the gainedjoint. An example of this form…
