Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 177

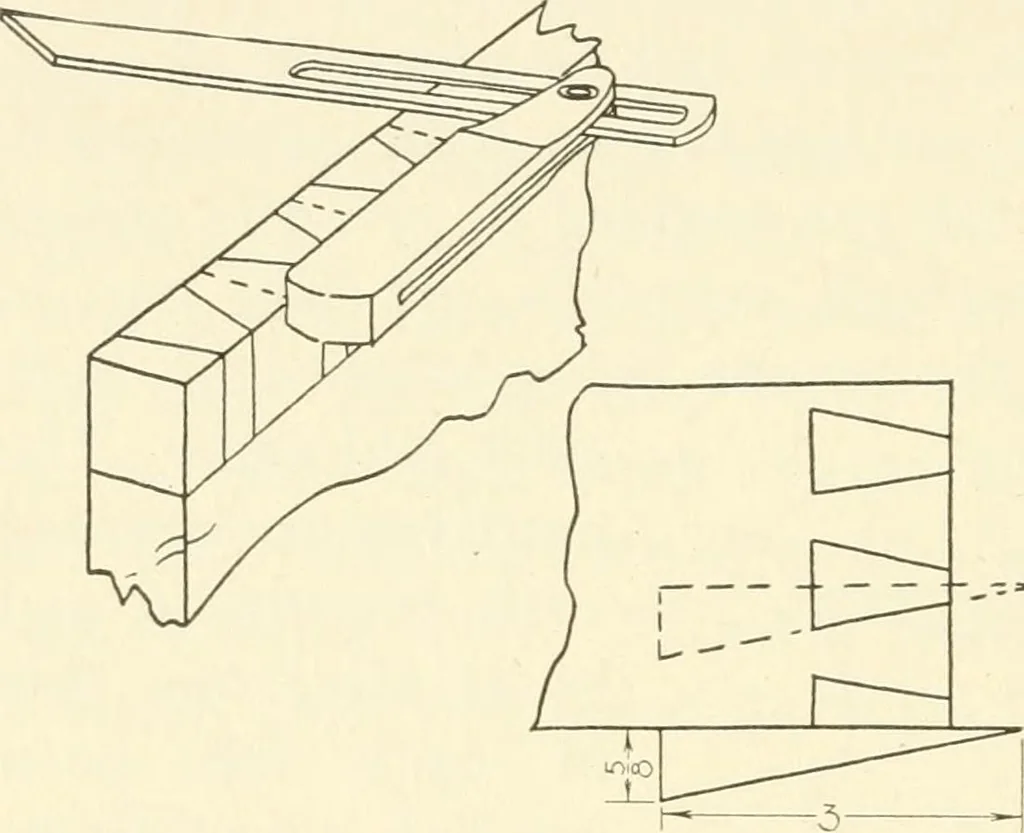

68. (5) Mark the flares on either side of the center lines. Place the bevel so that the wide side of the tenon shall be formed on the face side of the piece. (6) Carry these lines back on each side of the piece as far as the lines previously drawn across these sides. (7) With a fine tenon saw rip… … JOIN£RY. 173 on end on the face side of the second member, withthe face side just touching the cross line placed on thesecond member, Fig. 269, and mark along the sides ofthe tenons. (10) Square lines across the end to corres-pond with the lines just drawn. (11) Saw accurately tothe lines, cutting…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
