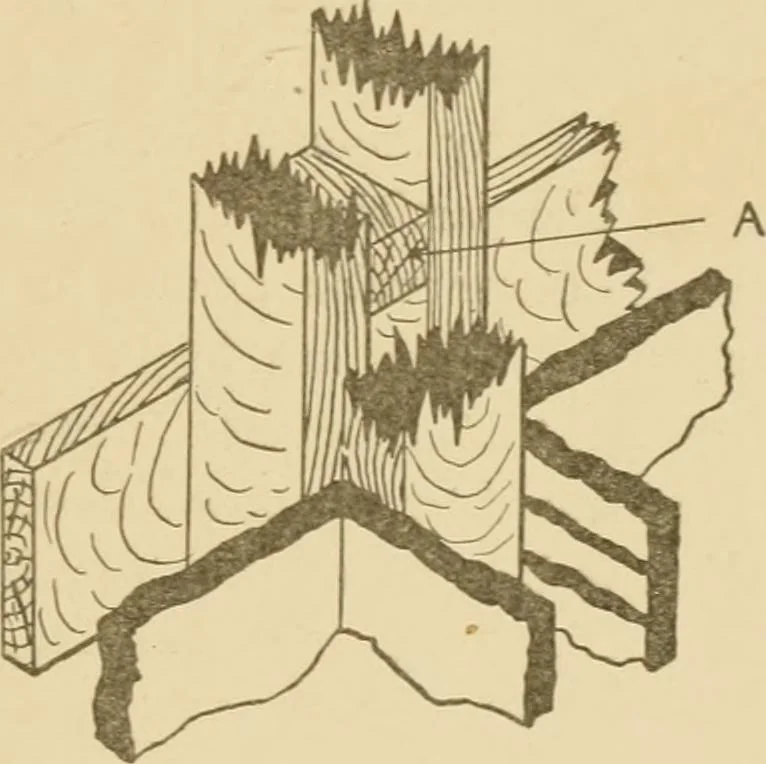

together. Thestrips should be well nailed to each piece. All door and window studs should have a tenon cut at thefoot of the piece to fit a mortise cut in the sill. Intermediatestuds are merely spiked to the sill without being framed into it.The tenons are cut in two different ways, as shown in… … Fig. 79. Wall Studdincr. 61 54 CARPENTliY piece, as shown. The width of the tenon is about one and one-lialf inches, leaving an inch and a-half on the outside and oneincli on the inside of the stud. Another way is to make thetenon on the inside of the stud, as shown in Fig. 81, tlie tenonbeing an…
