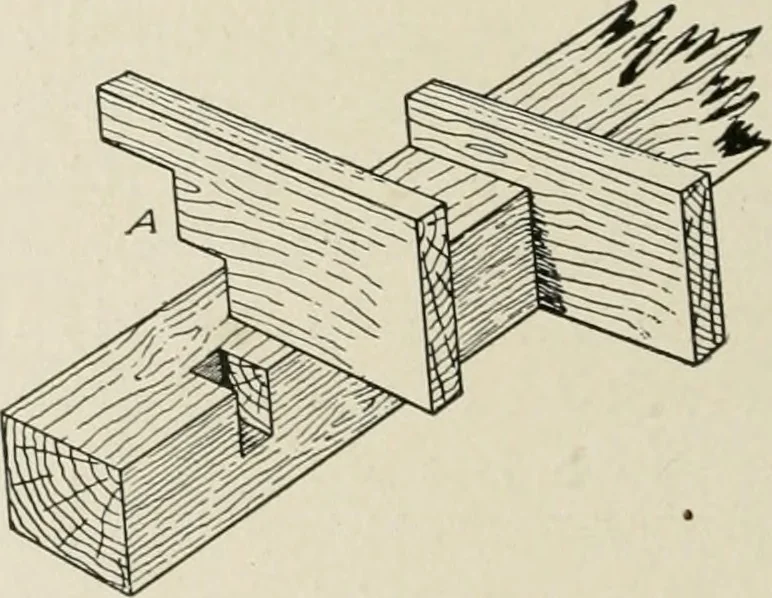

Fig. 93. Joist Hung in PatentHanger Fig. 94. Example of Sill Mortised toReceive Joist in the end of the joist, as shown at A in Fig. 94. The mortises arecut in the inside upper corner of the sill. They are about 4 inchesdeep and cut 2 inches into the width of the sill and are fixed inposition by…
