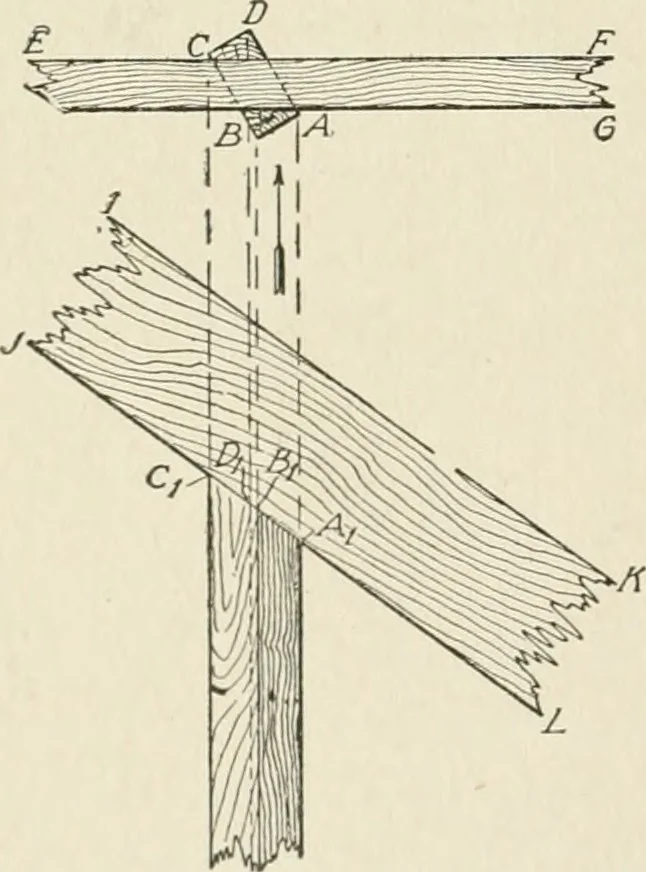

in plan. In the case of the partition 7/ M,Fig. 207, we have to deal with a some-what more difficult problem becausethe rafter crosses the stud diagonallyand the studs must be beveled diag-onally on top so that the bevel will runfrom corner to corner instead of straightacross the stud from side to… … Fig. 210. Cutting Studs for Parti-tion Running Diagonally 158 CARPENTRY 147 zzzk by the arrow, and A^Bi Cx Dx shows the stud as seen from thissame direction. The edge D± of the stud can not be seen from thisside and is shown as a dotted line in the figure. The rafter runsacross the stud, thus…
