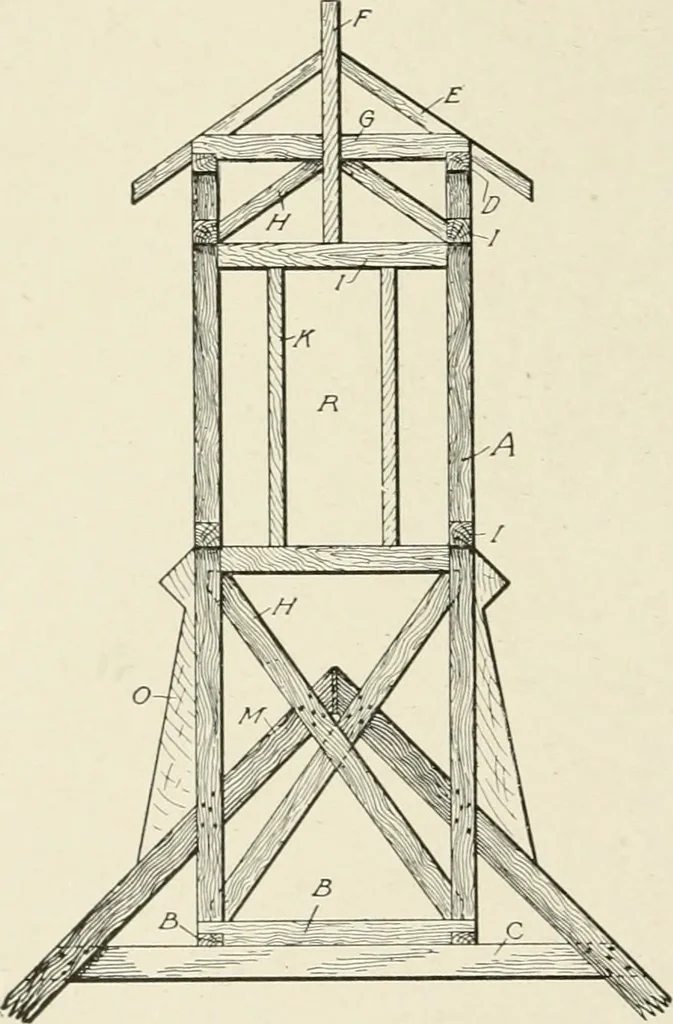

la; and at the bottom it is firmly fastened tothe tie G, which is cut in between the plates. The braces Hstiffen the frames against the wind. Girts / are cut in between thecorner posts and form the top and bottom of the slat frame openingR, besides tying the posts together. The sides of the opening… … Fig. 248. Section Through Frame of a SimpleCupola 188 CARPENTRY 177 plank 2 inches thick, and are simply furring pieces placed at intervalsof 11 to 2 feet all around the cupola to give the desired shape to thebottom part. The size of the pieces will depend on the size of thecupola. The posts may be…
