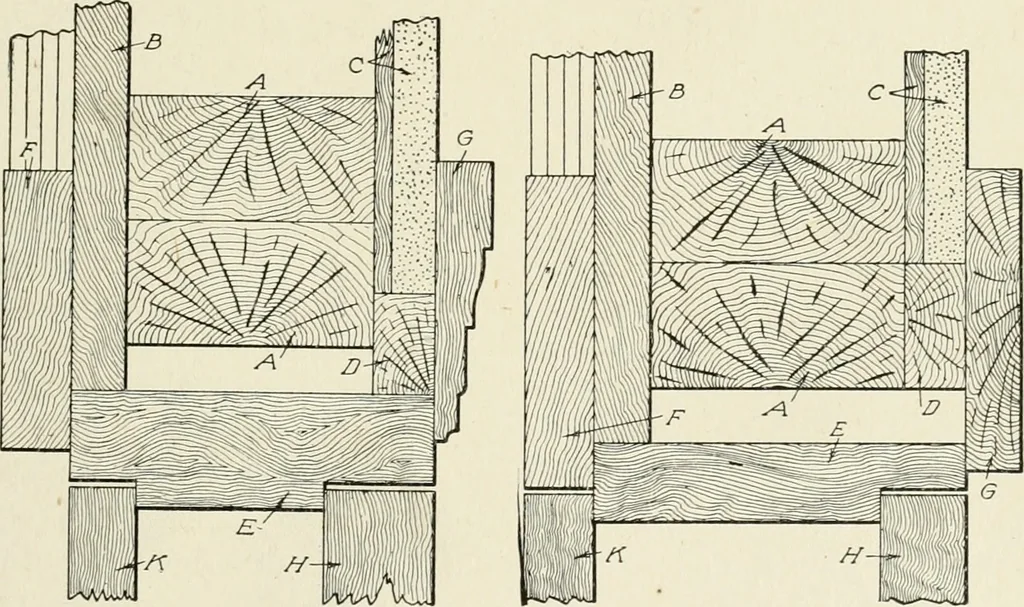

s in stud walls. The jambs and head of the frame, if in a building of wood con-struction, are usually made of plank from If inches to 2| inchesthick. As the doors to private houses generally open inward, theframes must be rabbeted on the inside edge to receive the door, andshould also be rabbeted… … Fig. 340. Section of OutsideDoor Frame Fig. 341. Another Outside Door FrameConstruction Fig. 340 shows an outside door frame for a wood building. AAare the studs which form the rough opening, the section being takenhorizontally through the door jamb. B is the outside boarding andC is the lathing…
