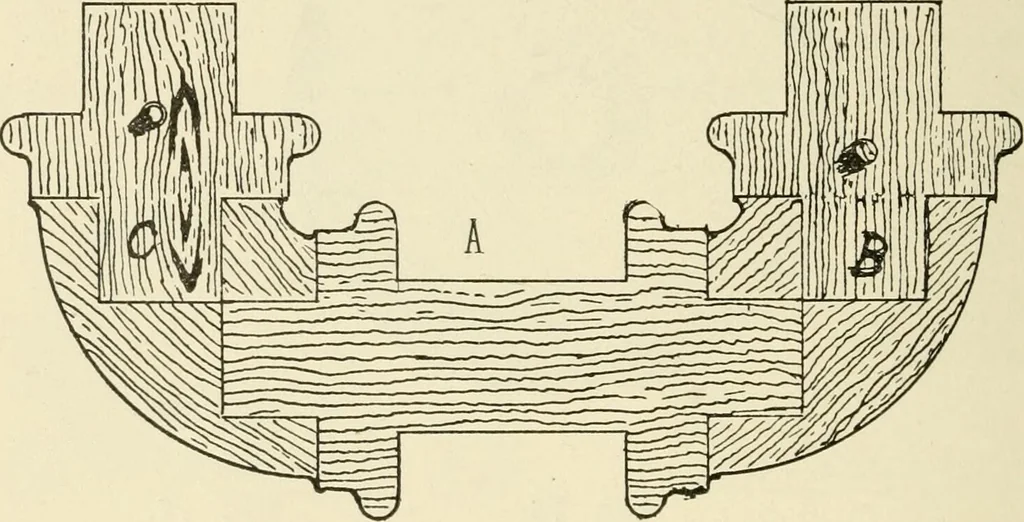

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 145 — Fig. 74. than for the bend, though the work is quite similar incharacter to that of the last pattern. It is made as fol-lows : A ring, as shown at Fig. 73, is first turned, with itscross section as indicated at (a). The best way to makethis is to get out four pieces with the grain as indicated … Fig. 75.in the figure; that is, the chord of the curve should beparallel with the grain of the wood. Fit them togethervery accurately, and glue them to a chuck (but not to PIPE FITTINGS 131 each other) that has been previously covered with paper,and turn them to the required shape. A solid piece…
