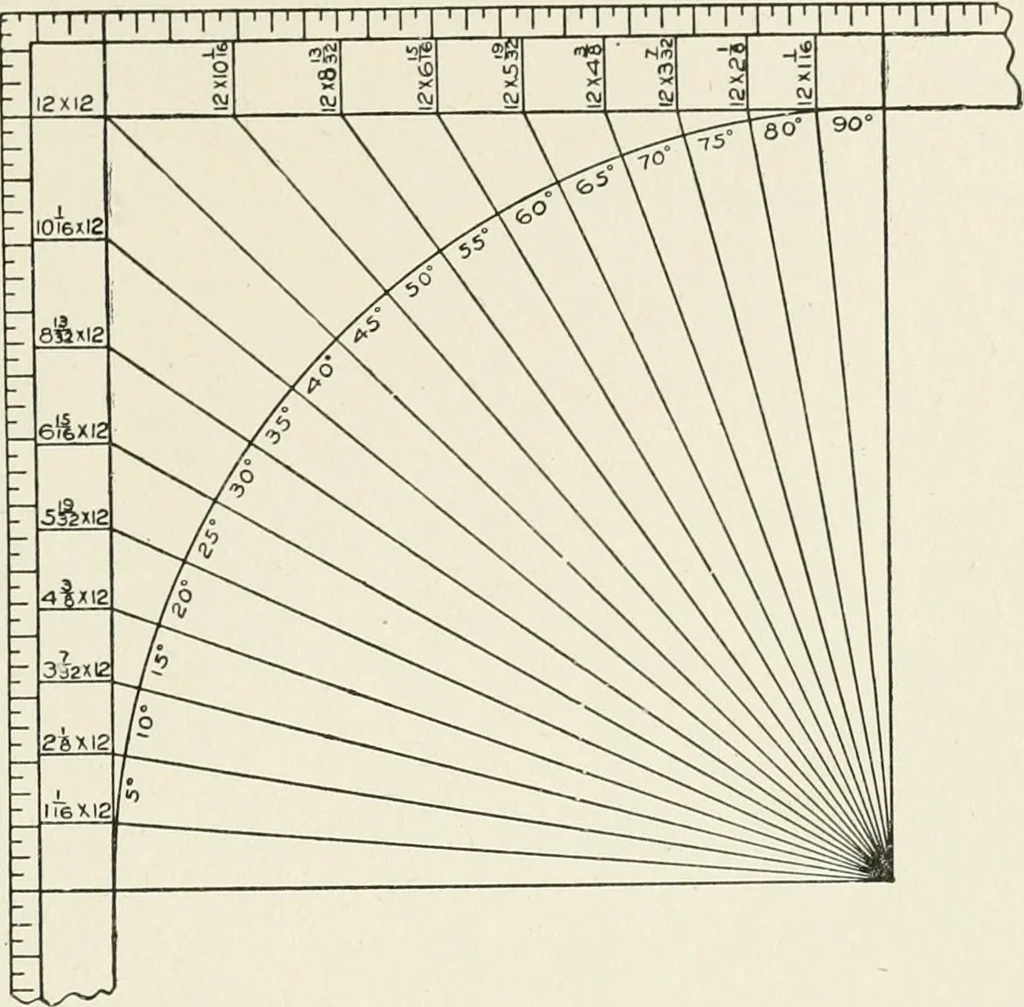

Fig. 9. Use of Square to Find Miter ofHexagon. It is shown that 346 THE STEEL SQUARE … for a pentagon, which makes a 36-degree angle with the plate, the figure to be used on the square for run is 14| inches; for a hexagon, which makes a 30-degree angle with the plate, the figure will be 13| inches; and for an octagon, which makes an angle of 22* de-grees with the plate, the figure to…
