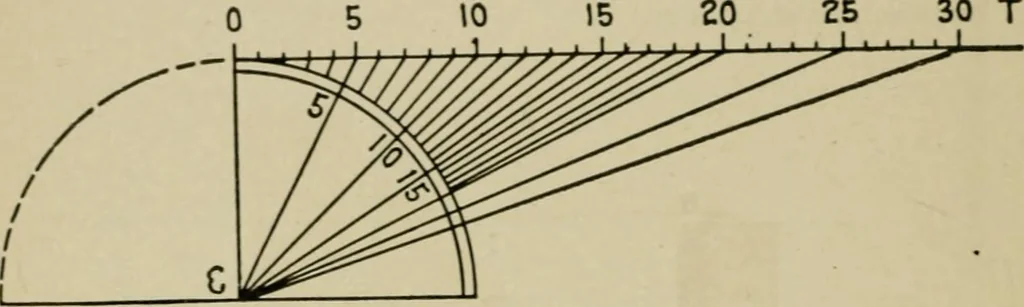

in equilibrium, the component ae = H sin x isequal and opposite to ac, hence from which ab cos « = H sin x ab = H = H tan x cos X Since ab is proportional to the current, ab = k C = K tan x 446 HAWKINS ELECTRICITY in which it is a constant depending upon the instrument. For any othercurrent C, kC =… … Fig. 520.—Graduation of tangent galvanometer scale with divisions representing tangentvalues. In the figure let a tangent OT be drawn to the circle, and along this line let anynumber of equal di\-isions be set off, beginning at O. From these points draw lines back tothe center. The circle will thus…
