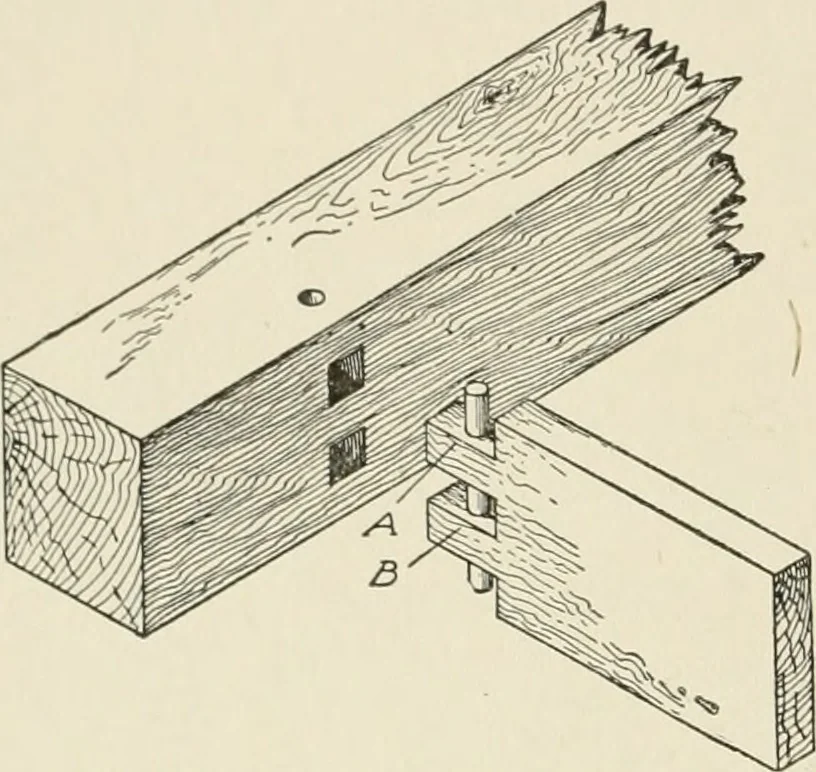

revents the two piecesfrom being pulled apart. Thisjoint may also be cut as shownin Fig. 53, with the flare on only one side of the tenon, the otherside being straight. Splices. As already explained, a splice is merely a joint betweentwo pieces of timber which extend in the same direction, and is… … Fig. 50. Double Tenon Joint
