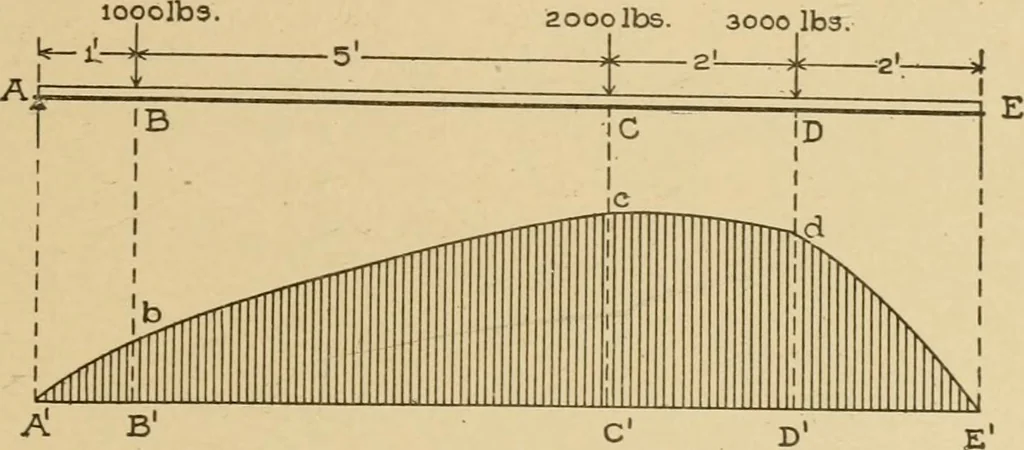

own.- Layoff AE (Fig. IT, h) as a base. In example 1, Art. 48,we computed the values of the bending moment for sections onefoot apart, so we erect ordinates at points of AE one foot apart,to represent the bending moments. We shall use a scale of 10,000 foot-pounds to the inch; thenlie ordinates… … ScaJe: i= looooft.-lbs.Fig. 18. Laying these ordinates off, and joining their ends in succession,we get the line Mham, which is. the bending moment line!Fig. 17, (6, is the moment diagram. 2. It is required to construct the moment diagram for thebeam, Fig. 18, a (a copy of Fig. 9), taking into…
