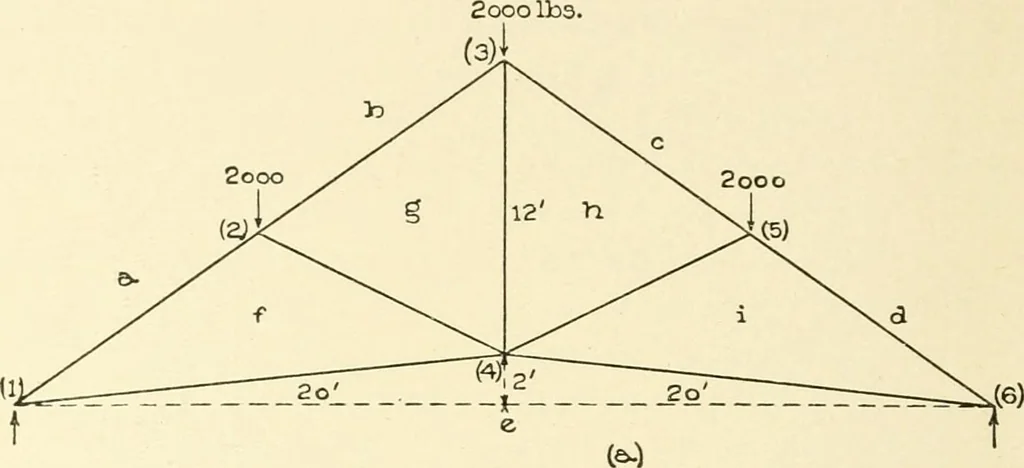

head on ^//near joint (1) to indicate that pull. EXAMPLES FOR PRACTICE. 1. Construct a stress diagram for the truss of the precedingExample (Fig. 22^^) making all the polygons counter-clockwise,and compare with the stress diagram in Fig. 22. 171 38 STATICS 2. Determine the stresses in the members… … Sca-le: in = 2ooolb5 1 ^ -
