The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 192

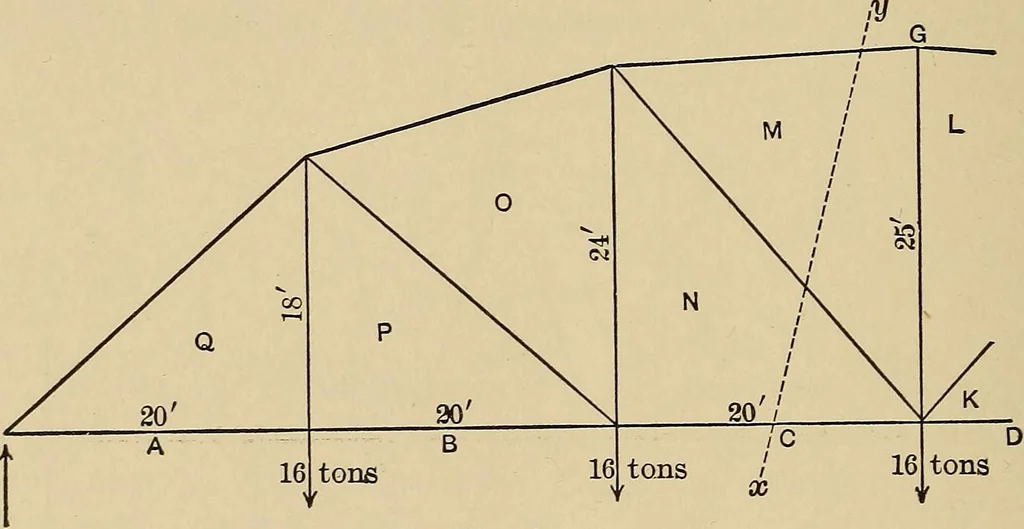

Fig. j. 9. A bridge truss, a portion of which is shown in Fig. k, has a span of120 feet divided into six equal bays. It is designed to carry a dead loadof 16 tons at each of the lower panel points. Calculate, by the method ofsections, the stresses in the members GM, MN, and NC, and indicate… … Fig. k. framed structures — RECIPROCAL DIAGRAM 183 10. Complete the frame diagram of problem 9 and construct the re-ciprocal diagram, tabulating the magnitudes and kinds of stresses in themembers. Scales: Linear, jV inch = I foot; load, ^\ inch = i ton. II. The crane of Fig. / supports a load of 2…
Mechanics, Applied · Power transmission
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
