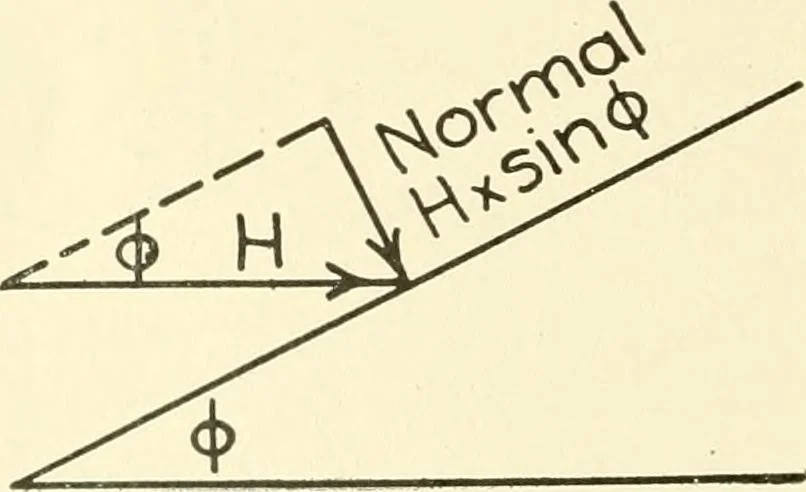

ponent on the inclined surface is deter-mined. This component is notequal to the horizontal pressuretimes the sine of the angle ofinclination, as one would sup-pose (see Fig. 7), but is greaterby a small amount. Roofs areusually figured on a basis of 40pounds pressure on a verticalsurface. The… … Fig. 7. Theoretical Determination ofNormal Component. 218
