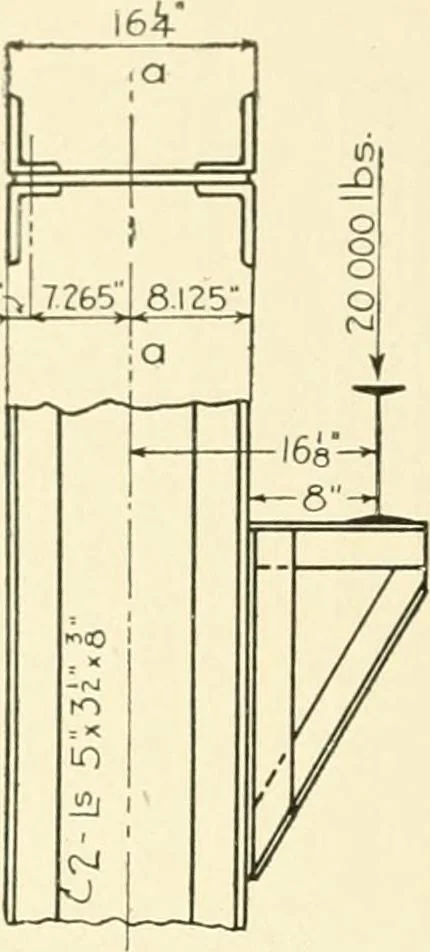

d the eccentricity of the runwaygirder must be worked out by formula S,Strength of INIaterials, p. 86; and to thismust be added the direct stress caused bythe weight of the roof and the crane-girderreaction. Since, according to Article 13, the unit-stress must be reduced one-half in deter-mining… … Fig. 97. Illustrating Problem onPage 73. multiplied by 2 in order thatthe same formula for the unit-stress may be used throughou tin the design of the column. Let four 5 by 3U)y f-inchangles with a 16 by f-inch webplate be assumed, and placedas shown in Fig. 97. Theseangles have an area of…
