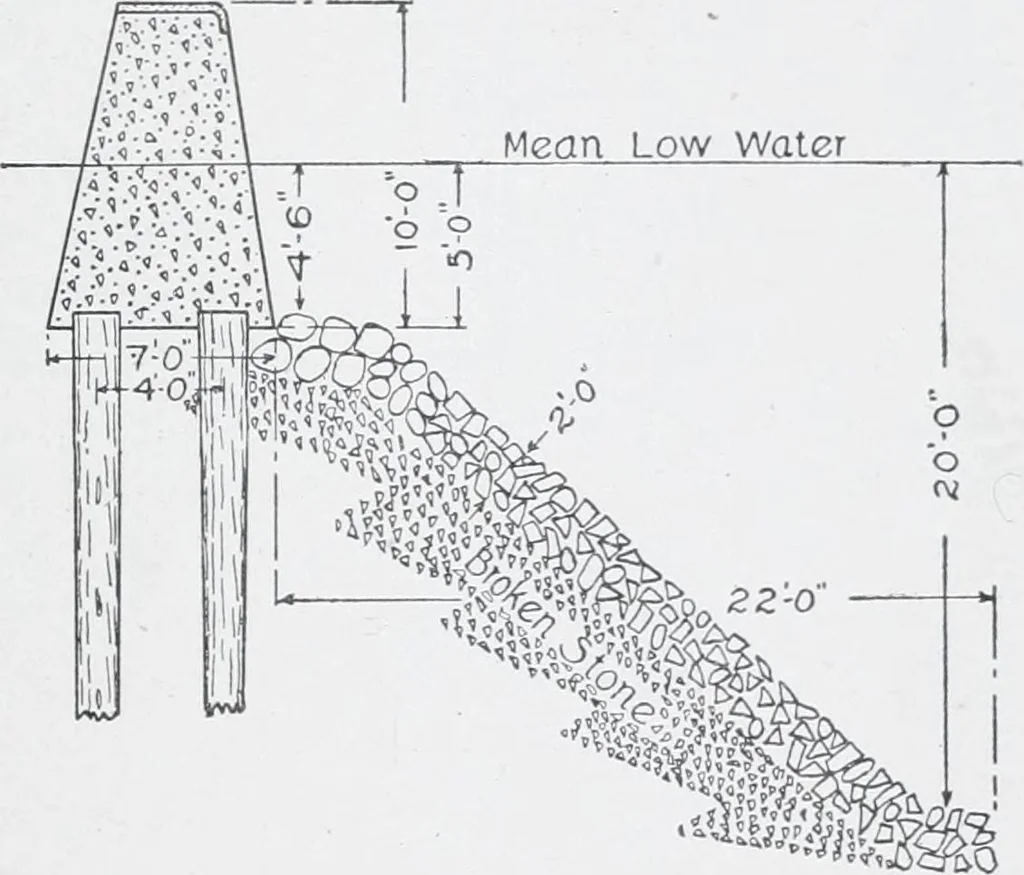

meter. On this end was placed a piece of 10-inchwrought-iron pipe 10 inches long. The lower end of the top pilewas trimmed the same as the top of the first pile, and, when raisedby the leads, was fitted into the pipe and driven until the requiredpenetration was reached. The piles were cut off 4h… … m n JM Fig. 59. Section of New Sea-Wall, Annapolis, Maryland. 149 138 MASONRY AND REINFORCED CONCRETE
