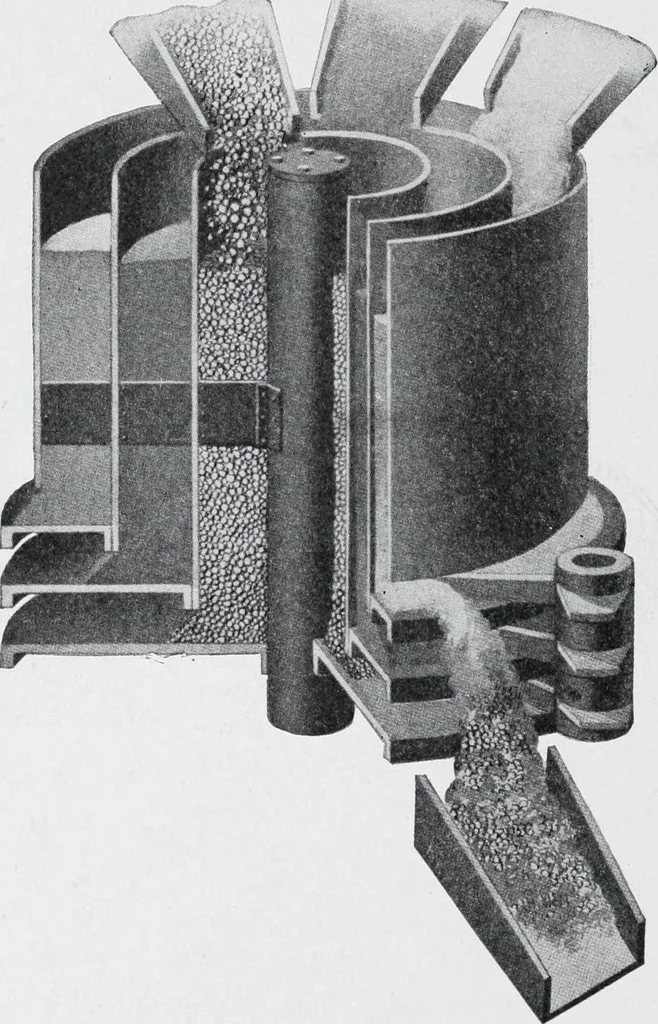

bove the other and mounted on the same spindleso that they revolve together. Each table has its own storagecylinder above it, the cylinders being placed one within the other, asshown in Fig. 131. 293 278 MASONRY AND REINFORCED CONCRETE 334. Source of Power. In each case the source of power… … Fig. 131. Interior View of Trump Concrete Mixer upon the local price of electricity. When all the machinery can besupplied with steam from one centrally located boiler, this arrange-ment will be found perhaps more efficient. In the construction of some reinforced-concrete buildings, a partof the…
