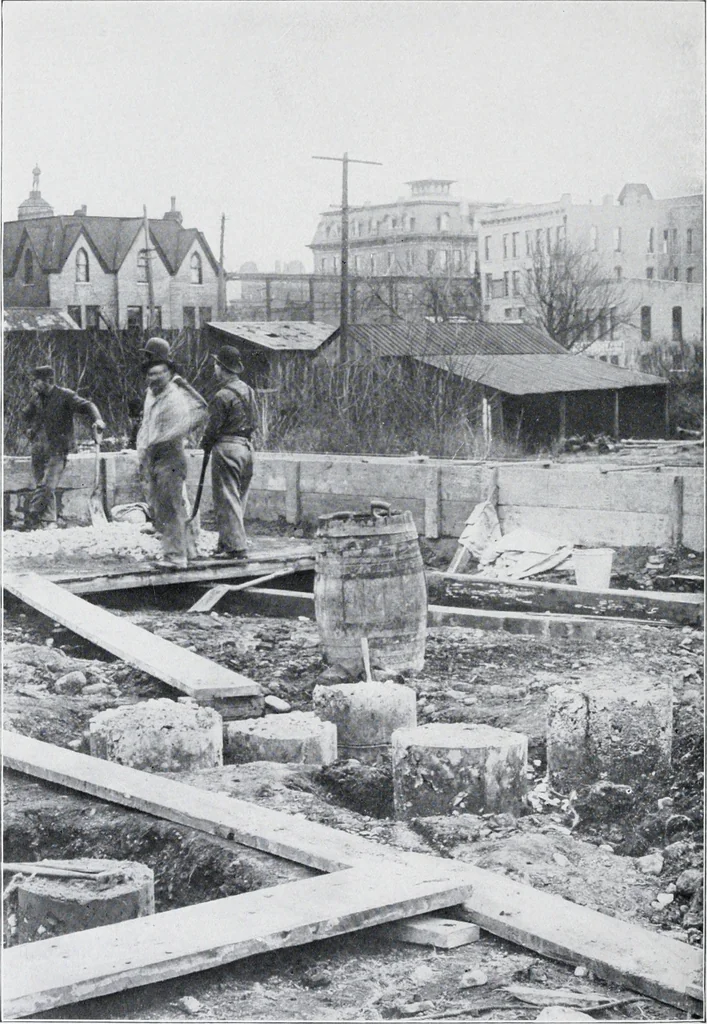

general reinforced with 8 bars1 inch square, in the lower floors;and this amount of steel wasgradually reduced to 4 bars 1inch square, in the seventh story.In the interior columns, thereinforcement above the steelcores consisted of 8 bars f inchsquare, in the floor just abovethe structural steel;… … COMPLETED CONCRETE PILES The five piles in the center are to serve as the foundation for a chimney. A comparison withthe barrel shown in the picture will give an accurate itlea of the size of the piles. MASONRY AND REINFORCED CONCRETE 329 spaced 24 inches on centers,the latter being placed at right…
