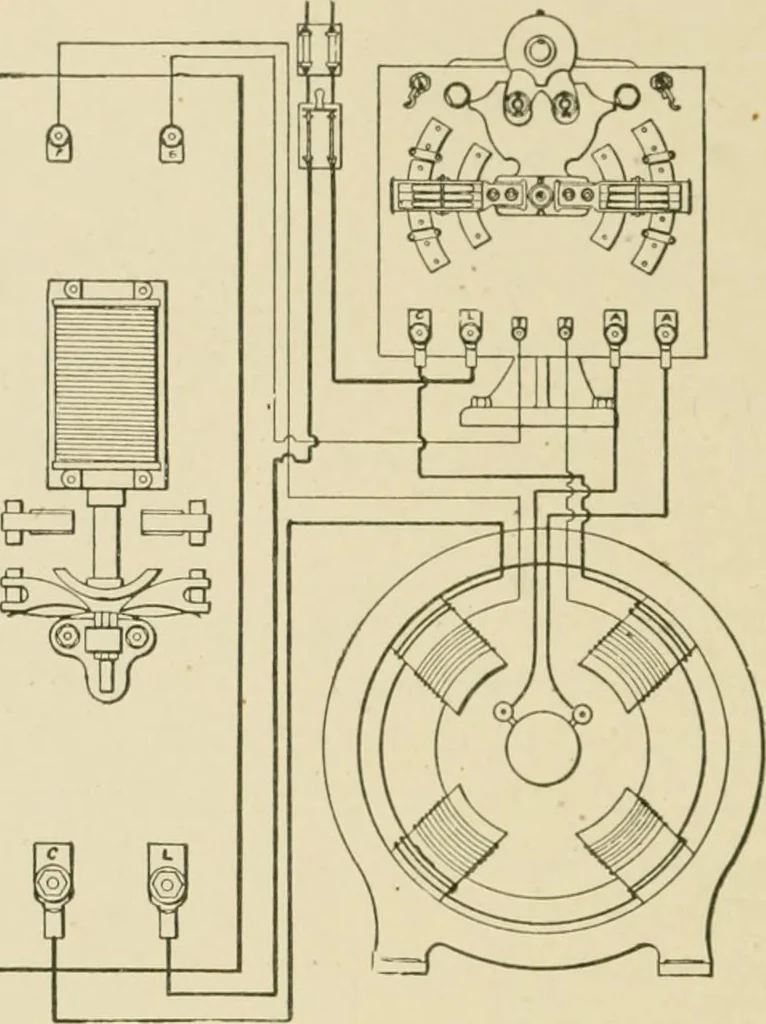

>l lol, t~^ (d |o) ^^ … ■m ^Yic^ Fig. 16. (B) Wiring Diagram of Controller with Separate Switch. device; the cutting out of the resistance upon the starting of theelevator is purely medianicah The arm or cross head on the con-troller, which cuts out the resistance in steps, is made to move over the contact pieces arranged…
