Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 176

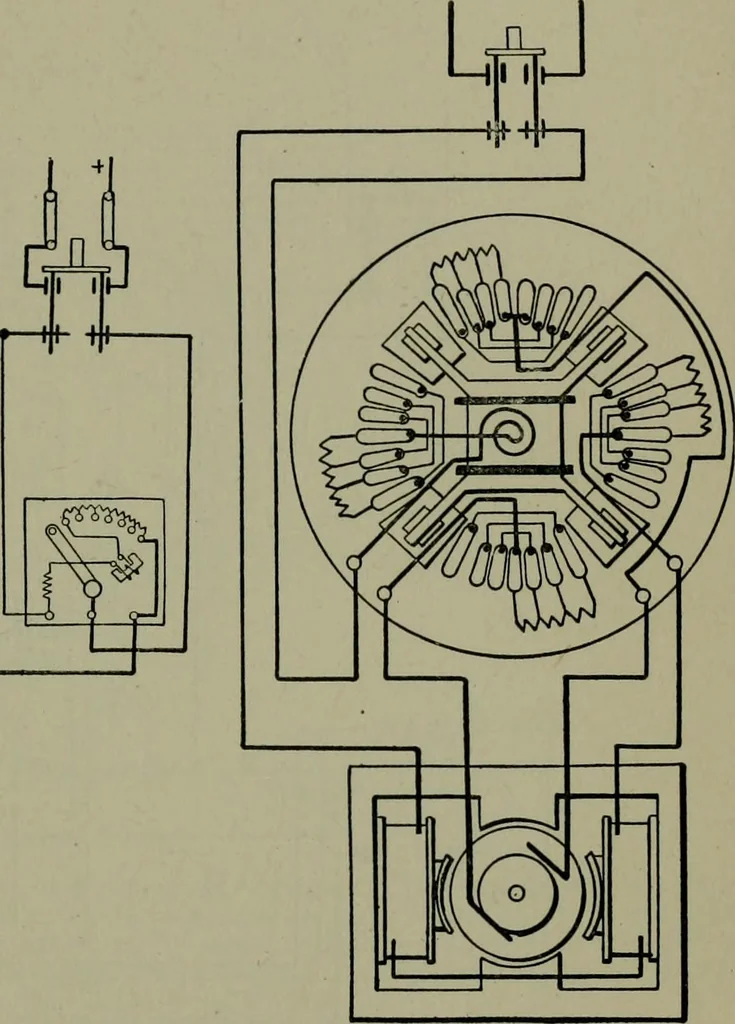

Fig. 262. Fig. 263. Fig. 262.—Connections for an organ regulator and starting box, the no-load release beingconnected across the line. Arrangement is shown for a series motor. There would be nochange with a shunt motor, other than in the starting rheostat. Fig. 263.—Connections for a self-starter…
