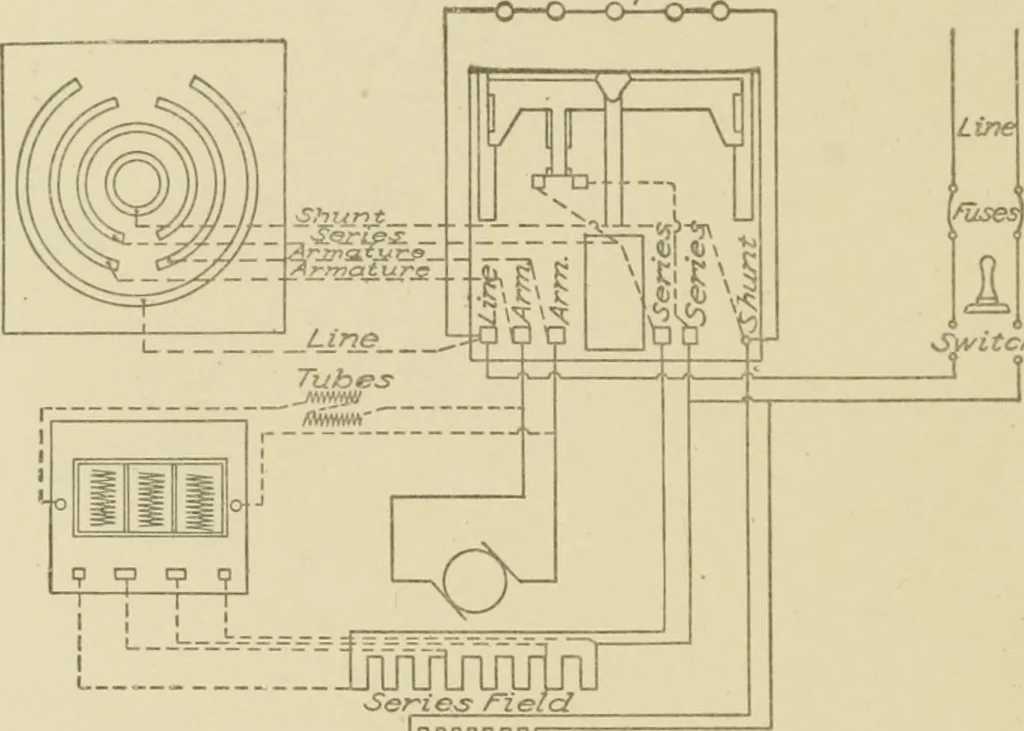

electrical means—and is notreally necessary; the short circuiting of the armature through re-sistances in the controller is all that can be desired. In many elevators where a variable speed is desired, connec-tion is made between the armature and a solenoid connected to a camps •Sivitch … 1 — 1 1 1 1 o 1 ? 7 ? < ? 1 1 1 lIiuWDijirif •Series Field Innjuuuiar•Shixnt Field Fig. 21. (C) Wiring Diagram for Mechanical Controller. switch which is kept closed except when the solenoid is actuated.This switch closes a circuit between the shunt field coils and a bankof resistances in the…
