Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 116

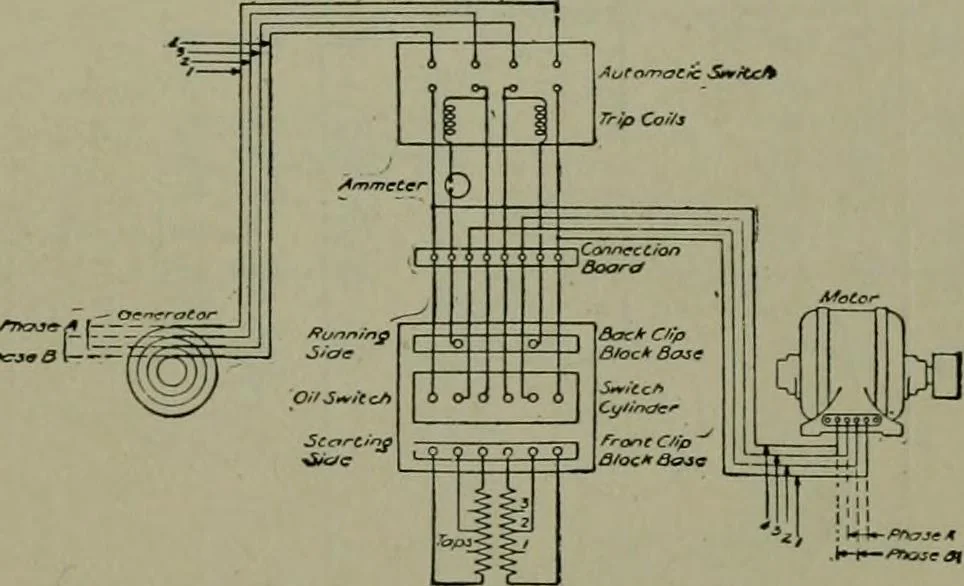

Fig. 169.—Connections for the auto-starter panel shown in Fig. 167 when used with three-phase motor. Rating: 100 amp. per phase, from 1000 to 2500 volts. … Fiti. 170.—Connections for the auto-starter panel shown in Fig. 167 when used with two-phasemotor. Rating: 100 amp. per phase, from 1000 to 2500 volts. 106 WIRING. DIAGRAMS OF ELECTRICAL APPARATUS Afo/n 6l/j Bai~s Taps
