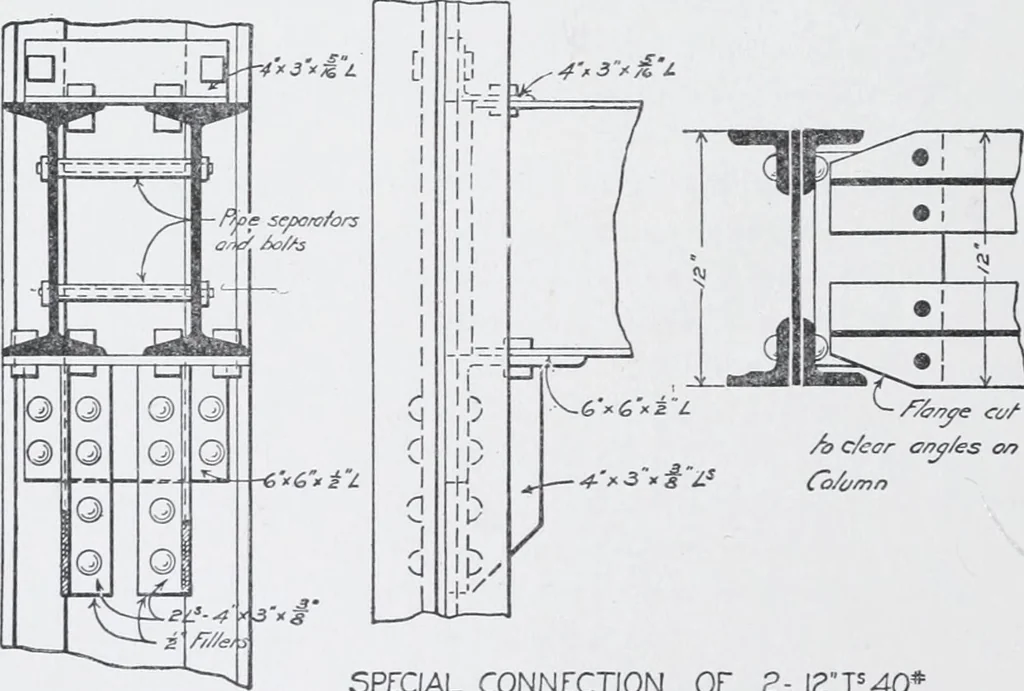

Q BEAM FRAMED FLUSH WITH TOPOF GIRDER AND COPED TO IT … A> c/ccr ang/es onCo/cimn SPECIAL CONNECTION QT 2- I2IM0* TO PLATE AND ANGLE COLUMNFig. 148. 148 STEEL CONSTRUCTION 141 indicate clearly the composing elements so as to show whicli waythe web of the column sets. Beams and girders are indicated by single lines correspondingto the center lines of…
