Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 212

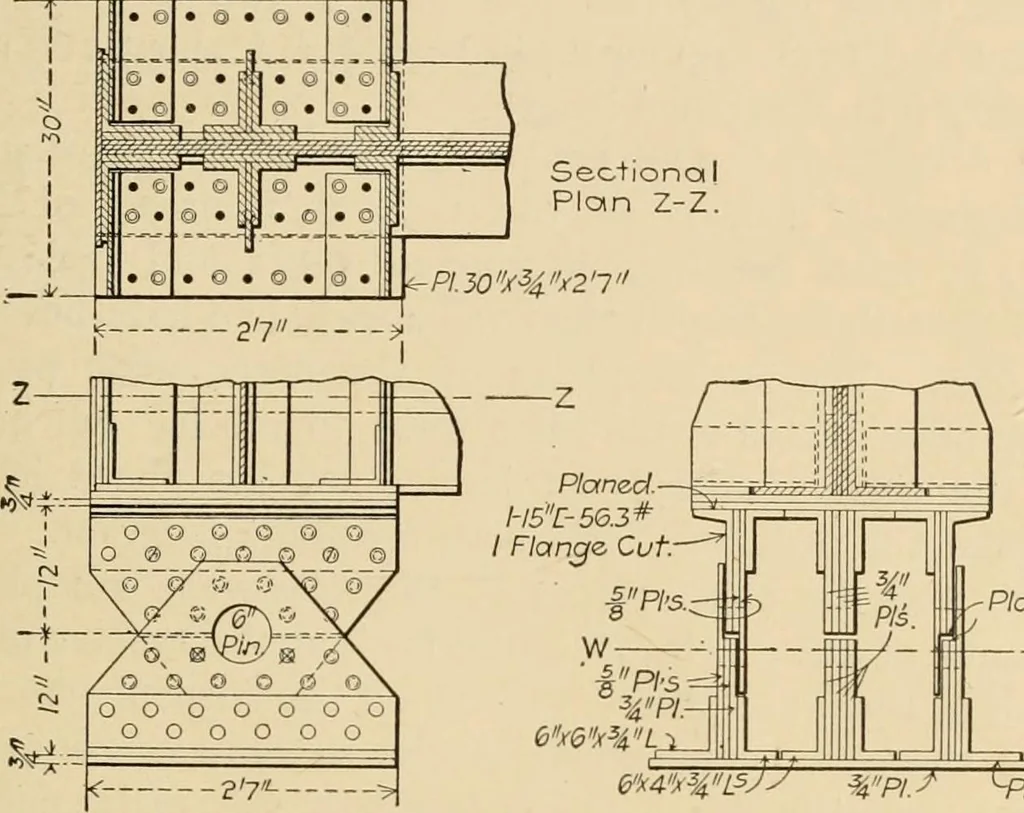

C. M. & St. P. Ry. Bridge. PtN BEARINGS IN RIVETED FIXED SHOES 195 the shoes, so as to clear them. The center pedestal web isdouble, with sufficient clearance between the vertical plates toreceive the center web of the shoe. Both shoe and pedestalare very low, vertically, and the full pin-holes… … Planed -W 34PI-- &k!^Lsyy ^^Pl.^ Planed. 0000 00000000 Hoizs for IkTurnsd Bolts. Fixed Intermediate Heavy Shoe Son Column Cap. Sectional Plan W-W Newark Bridge, C. R. R. of N. J. to the base plates, so that the girders are elevated the minimumdistance above the masonry. Clyde. — The four-track…
Bridges
