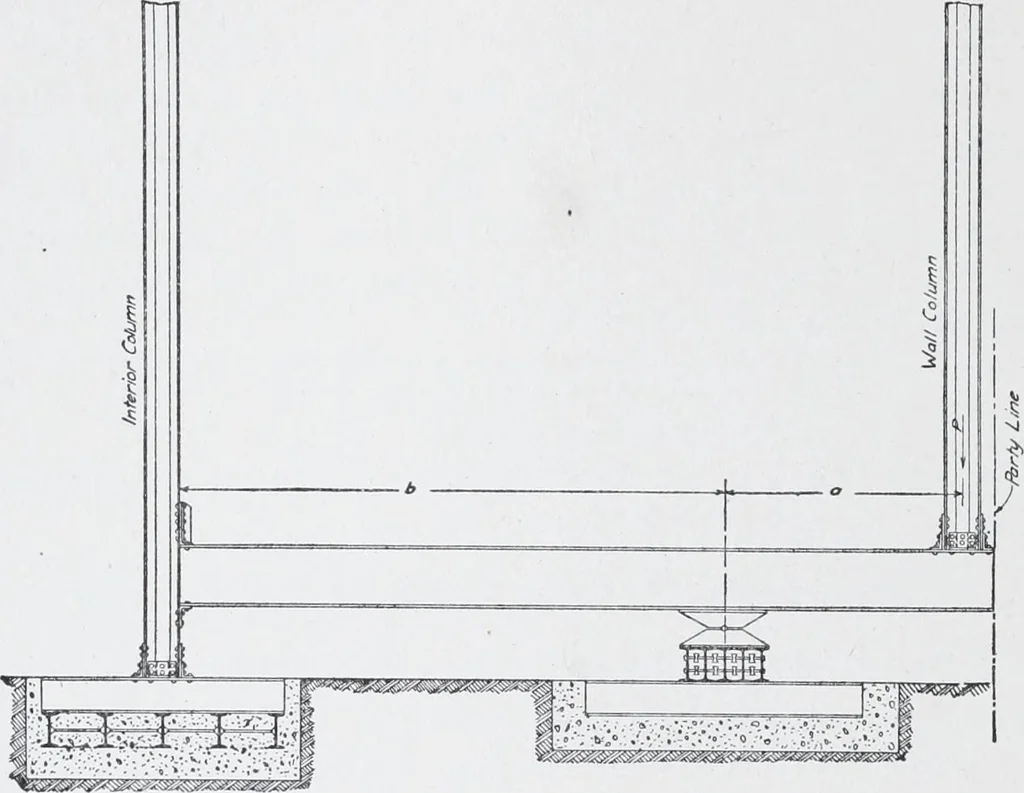

ustomary to figure the beams in such cases by the theory apply-ing to steel imbedded simply in the tension side of concrete. Foot>ings of this character are employed sometimes and their designwill be taken up later. 163 156 STEEL CONSTRUCTION Cantilever Foundations. Tlie case of cantilever… … /vjk /5S.fulcrum to column at o[)posite end of cantilever. Then the load on fulcrum is The distance a should be taken so that the fulcrum can be at the center of the footing and still keepwithin the party lines. Sometimes this cannot be done, and thenthe footing has to be designed to take account…
