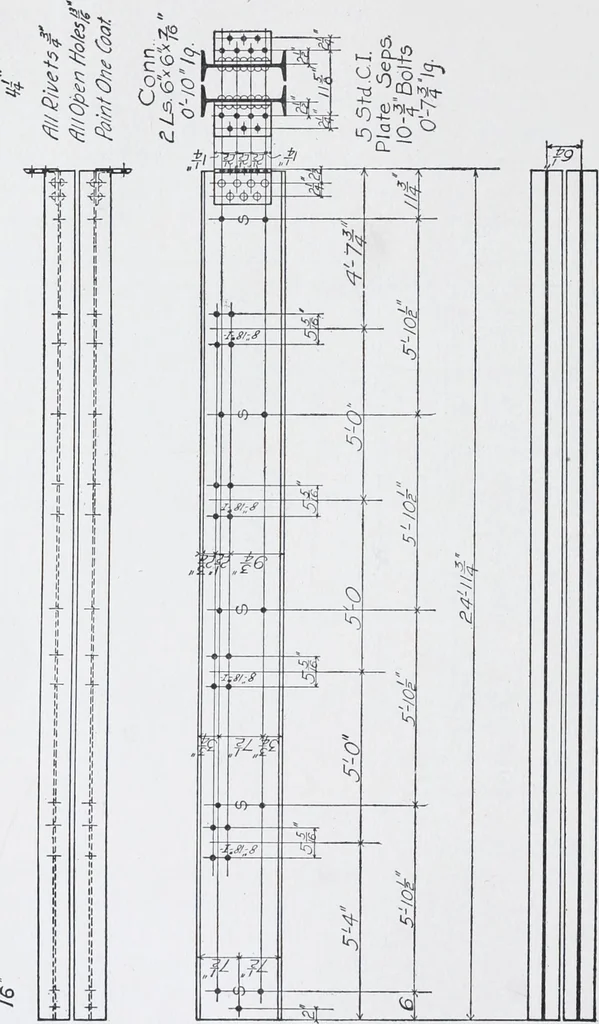

n the beams of girders to hold the rivets. After all the beamshad been riveted up, the whole frame could then be moved back intoposition, and the girders bolted up. Such an operation would beexpensive, as it would require considerable extra moving of the beams.In general, bolts through webs of both… … -1I Fig. 209. 234
