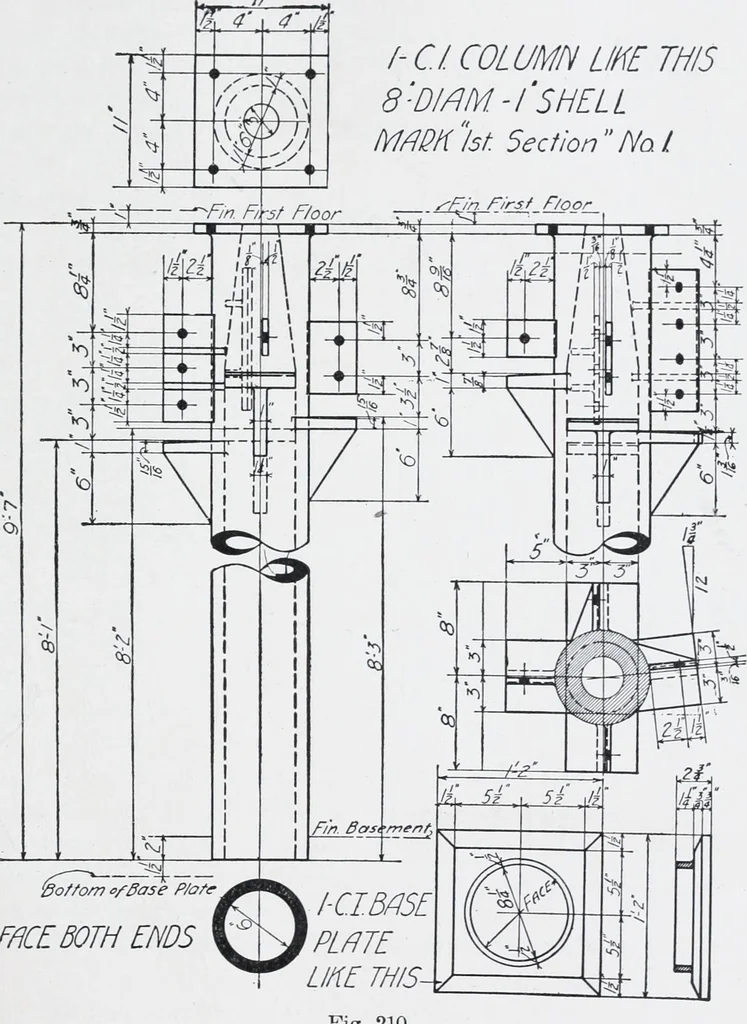

case of the web view, it is generally necessary to showwhat is on both sides of the web, as except in special cases, oneelevation only of the web is given. Fig. 210 gives the detail of the cast iron column shown on thesetting plan in Fig. 199. The foot of the column rests on a solidcast iron plate… … FflCEBOTH ENDS ig. 210. 239 230 STEEL CONSTRUCTION the column in place, but this is one very generally used. The rela-tion of the bottom of the base plate to the finished floor line shouldalways be given to enable the plate to be set at the proper grade. Connection of beams to columns is by a shelf…
