Johnston, Philip Devereux, 1855- · New York, D. Williams Company · leaf 144

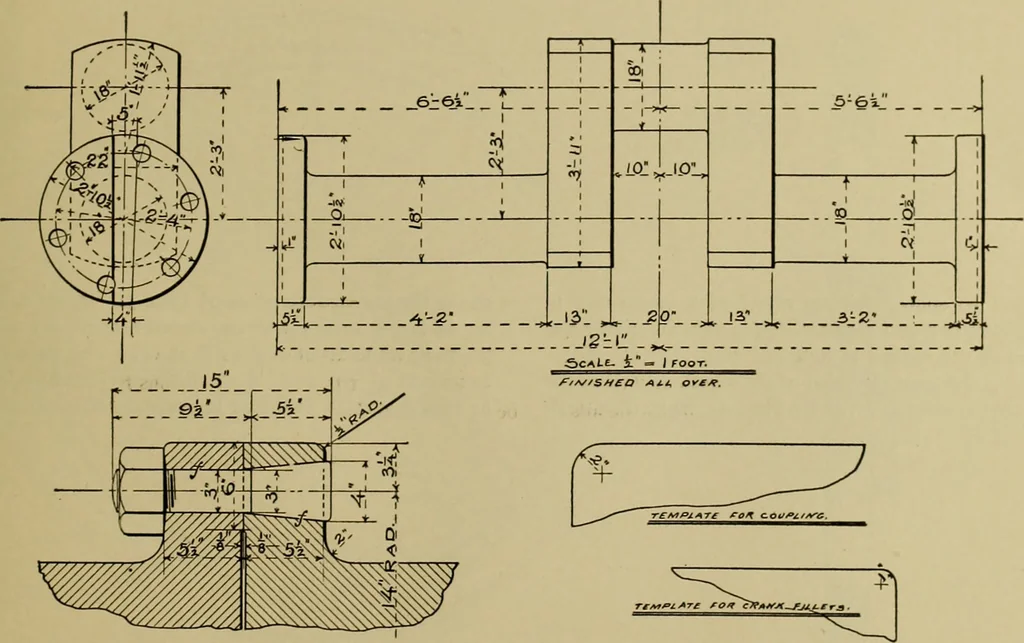

DISC CRANK AND CRANK PIN. 136 A MANUAL OF MECHANICAL DRAWING. Plate 49 shows a solid crank shaft such as is used inthe modern marine engine and in many vertical andhorizontal land engines. Full dimensions and direc-tions for the shop are given. Also for the draughting room. Make a drawing to larger… … ■ieCT/Orr SHOtV/^C COl/fLf^a BOJT. ■■ I CRANK SHAFT fo» MARINE ENGINE 138 A MANUAL OF MECHANICAL DRAWING, Plate 50 shows driving wheel of a locomotive infront elevation and sections. Also sections giving theshape of the spokes at hub and rim. Directions fordrawing the front elevation of the wheel,…
Mechanical drawing
