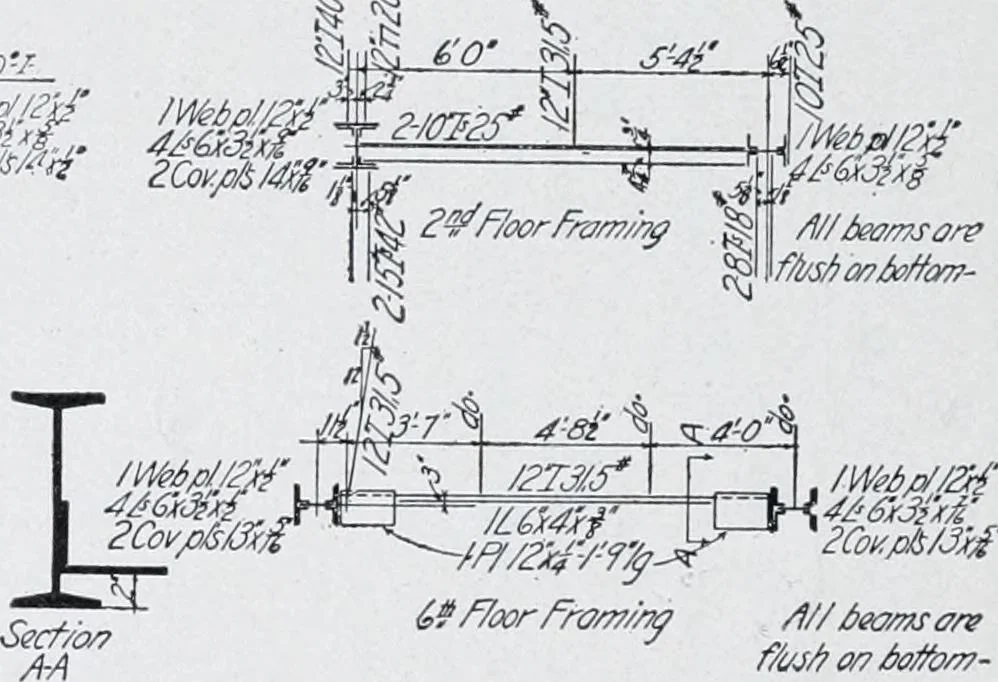

te comes intothe lines of the column at the top and there is a plate the width of the 253 244 STEEL CONSTRUCTION flanges above tliis point, it is better to make tliis a separate plate.If this plate is necessary for the effective area of the column the joint Beams riusl^On Befcm 6:H /^^I4d fTic SoM… … Figs. 229, 230, 231. can be faced. The bracket and shelf angles on the plate are for abeam framed between columns. 15-if
