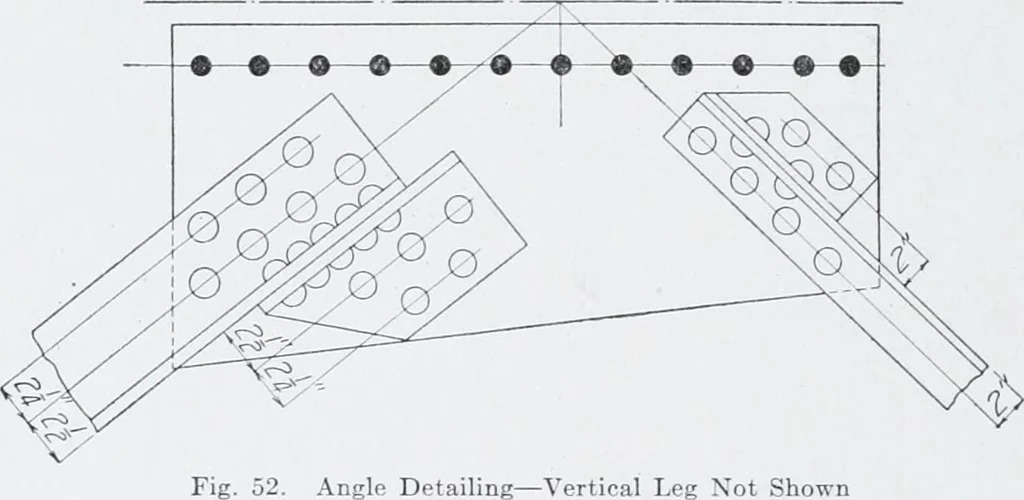

he stresses in the angle will be less than if thereference line was taken midway between the two lines. Angles in either tension or compression should be connectedby both legs, otherwise the stresses due to eccentricity will causethe total stresses to be far above the average stress, as a usual… … Angle Detailing—Vertical Leg Xot Shown the vertical leg of the clip, as the shopmen will attend to it; onlyshow the heads of the rivets. Figs. 50 and 52 illustrate the principlesmentioned above. The gauge should always be placed on the angle whether it isstandard or special, but do not give the…
