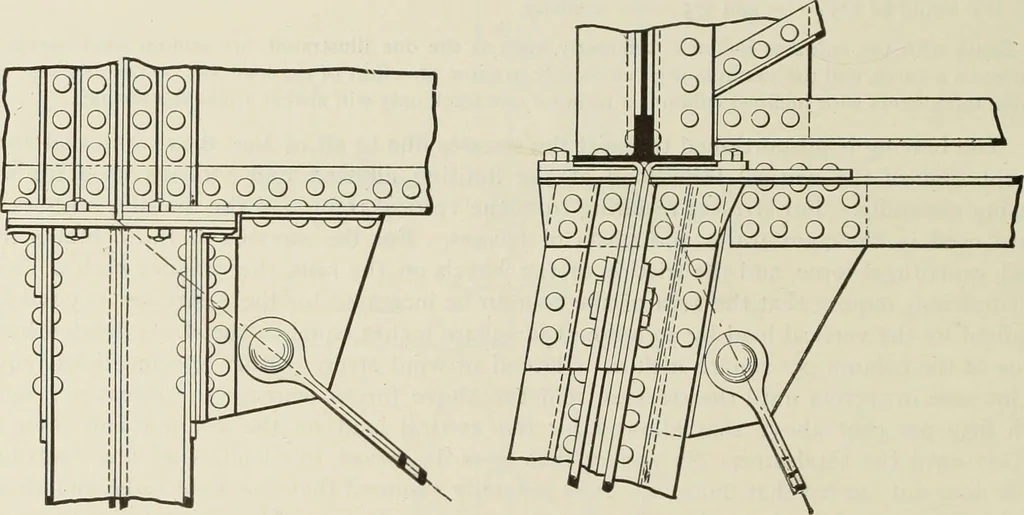

itudinal bracing. The girder rests on acap plate riveted to the top of the column by means of auxiliary angles as shown. The top ofthe column is planed to an even surface, on which the cap plate bears and transfers the loadof the girder directly through the bearing. The attachment of the transverse… … Fig. 410. and the rods are connected to it with a pin. The attachment of the top transverse strut mustbe made sufficient to take the horizontal component of the stress in the column. This com-ponent is best transferred to the strut by rivets through the cap plate extended as in thesketch. The top…
