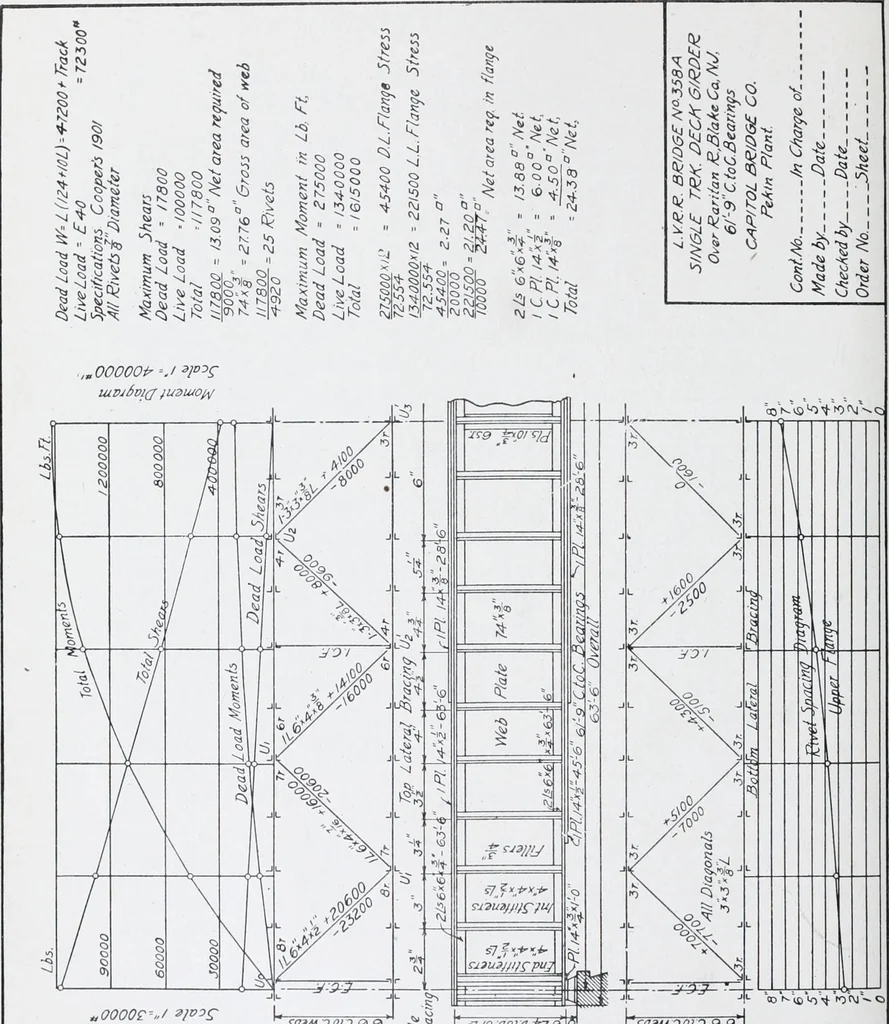

s, etc., and avoid all unnecessary cutting of plates and angles. (7) Locate the end holes for laterals and diagonals so that they can be shearedby a single operation, see Fig. 70. This will, as a rule, throw the end rivetfurther back from the working point, and may increase the size of the… … ^qiM 0 0)0 9.9
