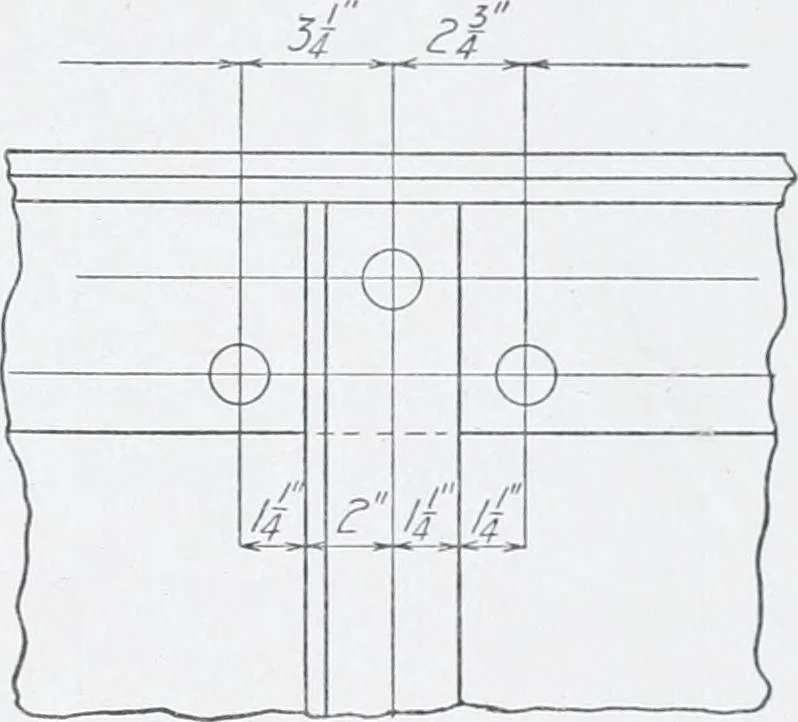

to space the rivets in the outstanding leg and cover plateswithout reference to those in the other leg of the angle, due carebeing taken that they do not come closer than 1| inches to the out-standing stiffener leg. No special rule governs the spacing in thecover plates, the only requirement being… … Fig. 74. Minimum Rivet Spacing forStiffener Angles n= (net area of cover plate) s where ?i=the number required; 5= the allowable unit flange stress; 415 102 STRUCTURAL DRAFTING and v= the value of a rivet in single shear or bearing in the cover plate,whichever is the smaller. For the first cover…
