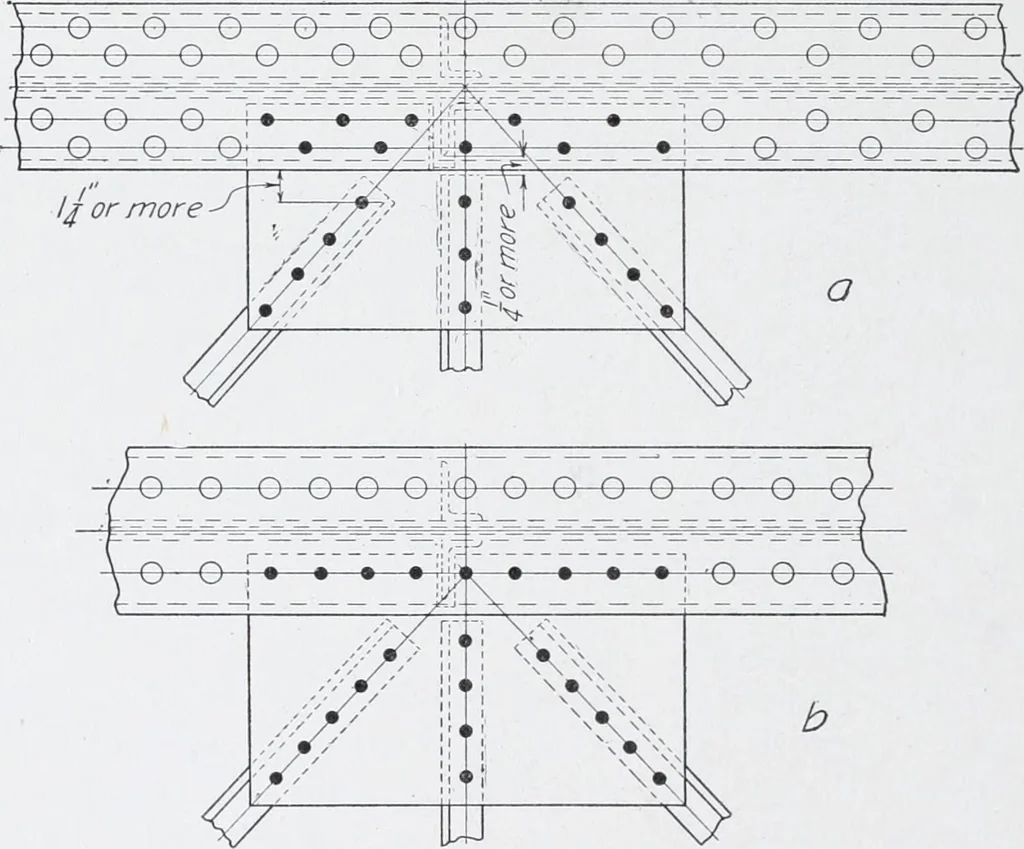

h rows of rivets; however, as mentioned before, thedouble-gauge Hne should only be used when unavoidable. The working point should be in the center of the web and on thegauge line of the stiffener angle when the method used in Fig. 78is used, except in cases where a splice is used in the center of… … Fig. 78. Detailing of Angles in Lateral Systems shown in 78b or Plate VIII. Sufficient clearance should be betweenthe cross frame and stiffener, see Fig. 78b. Each different angle, as in the case of stiffeners, should havea different mark. In such cases the mark is all that is necessaryto designate…
