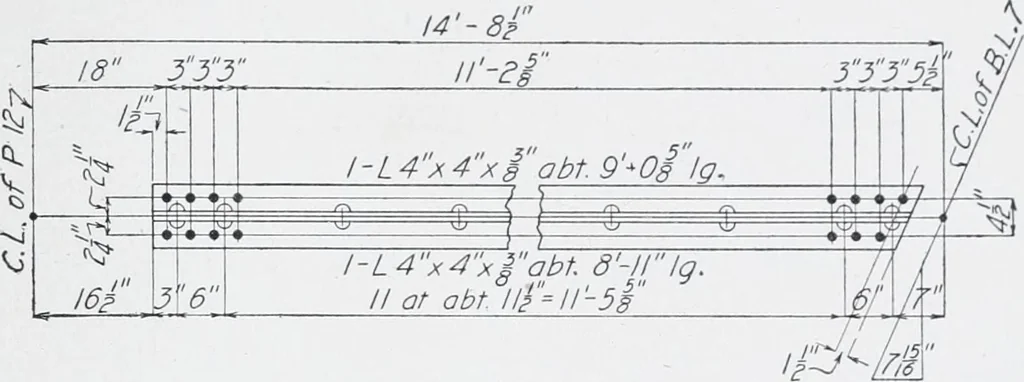

l4/<75/7fr Forged Ring To^ fit snugly over turnedshoulder on bearings 5 Wrought Masonry Plate Pm with lamas nuts Fig. 80. Pin-Bearing Shoe and Rookers for Plate-Girder Bridges 424 STRUCTURAL DRAFTING 111 Detailing of Compression Members. The first thing necessaryis to determine the pin plates… … Fig. 81. Detail of a Two-Angle Compression Member The rivet clearances and also the clearances required in orderthat each member may fit in with the adjacent ones in the structure,should receive the most careful consideration. The compression members consisting of two angles rivetedshould be…
