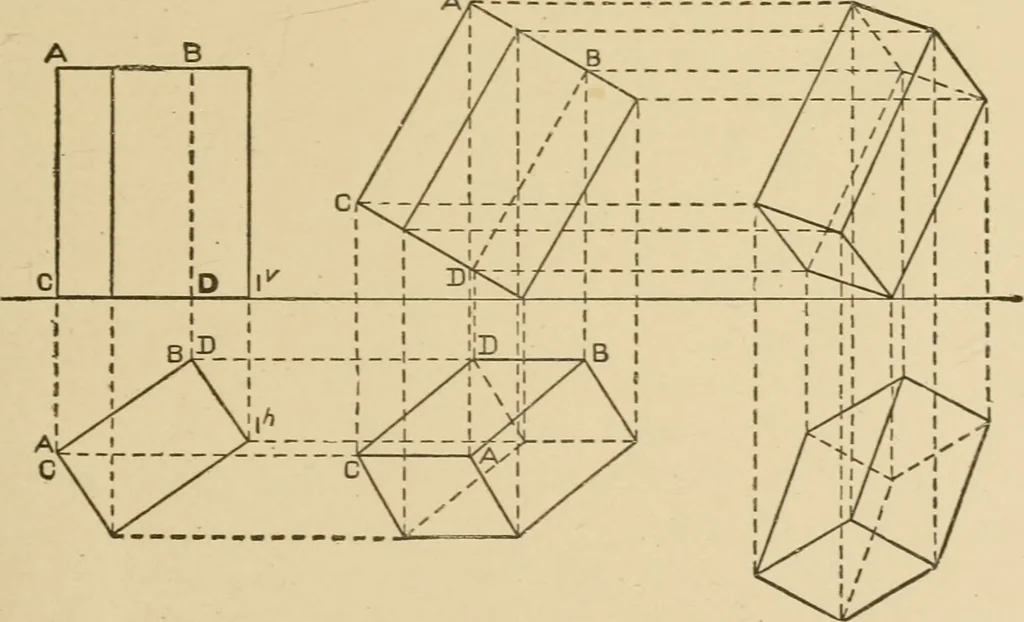

Fig. 16. tically up to the heights of the same points in the first elevation.All the other points are found in the same way as point No. 1. A/A B … Fig. 17. Three positions of a rectangular prism are shown in Fig. 17.In tlie first view, the prism stands on it.s base, its axis therefore 105 14 MPXriANICAL DRAWING. is parallel to the vertical plane. In the second position, the axis isstill parallel to V and one corner of the base is on the…
