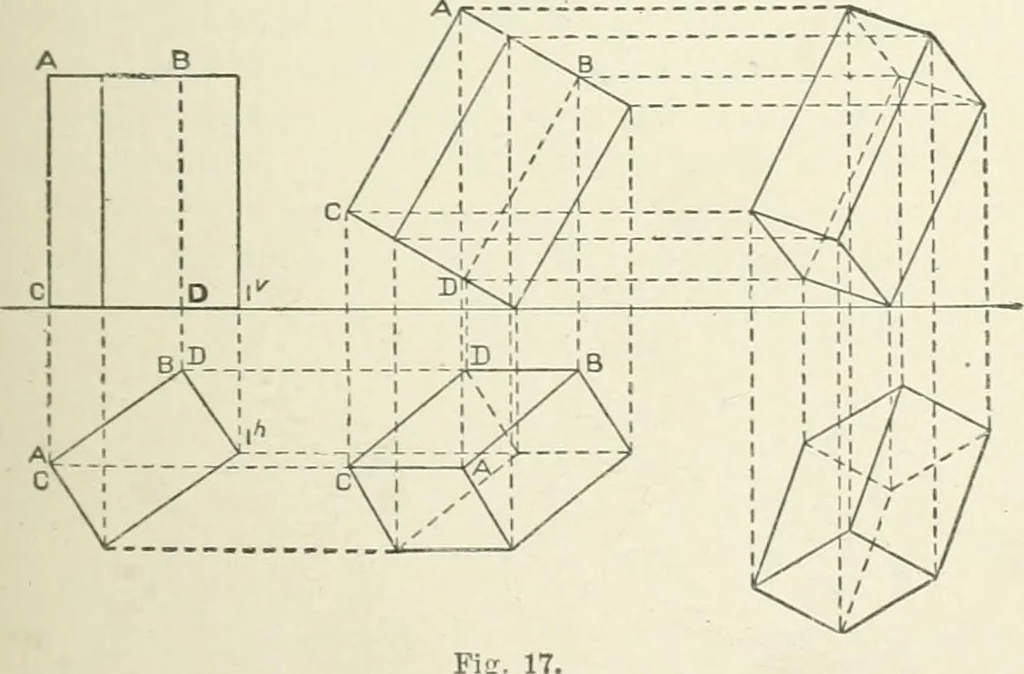

Fig. :o. tically up to the lieights of the same points in tlie firet elevation.All the other points are found in the same way as point No. 1. … Three positions of a rectangular prism are shown in Fig. 17,Lu die fiist view, the prism stands on its base, its axis therefore 14 MPJCIIANICAL DRAWING. is parallel to tlie vertical plane. In the seeond position, the axis iastill parallel to V and one corner of the base is on the horizontalplane.…
