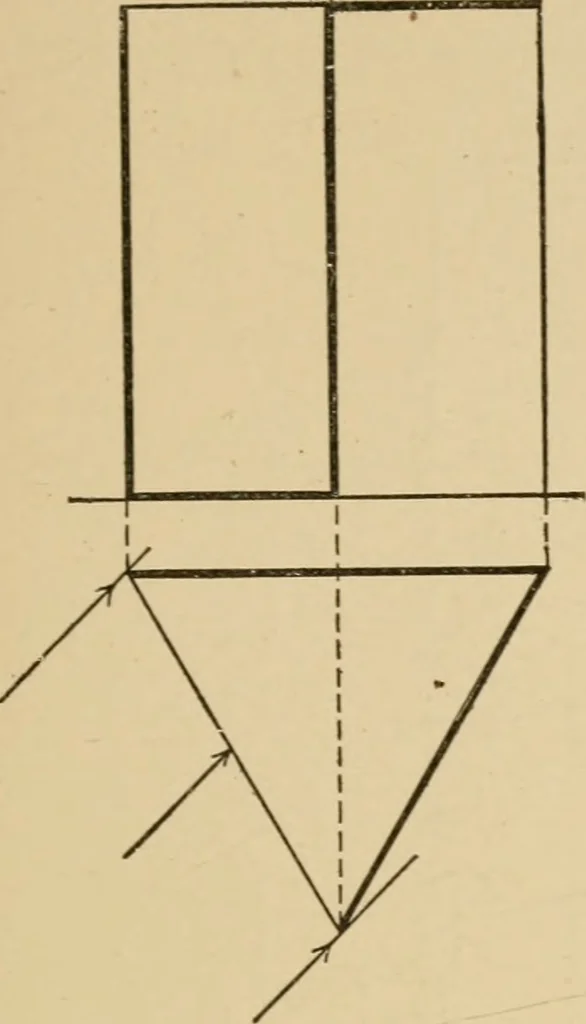

e in this Avay we determine thelight and dark surfaces, and theu put the shade lines betweenthem. Dotted lines, however, are never shaded, so if a linewhich is between a light and a dark surface is invisible it is not 108 MECIIAXICAL DRAWING. 17 sliaded. In Fig. 21 the i)lau shows the end of tlie…
