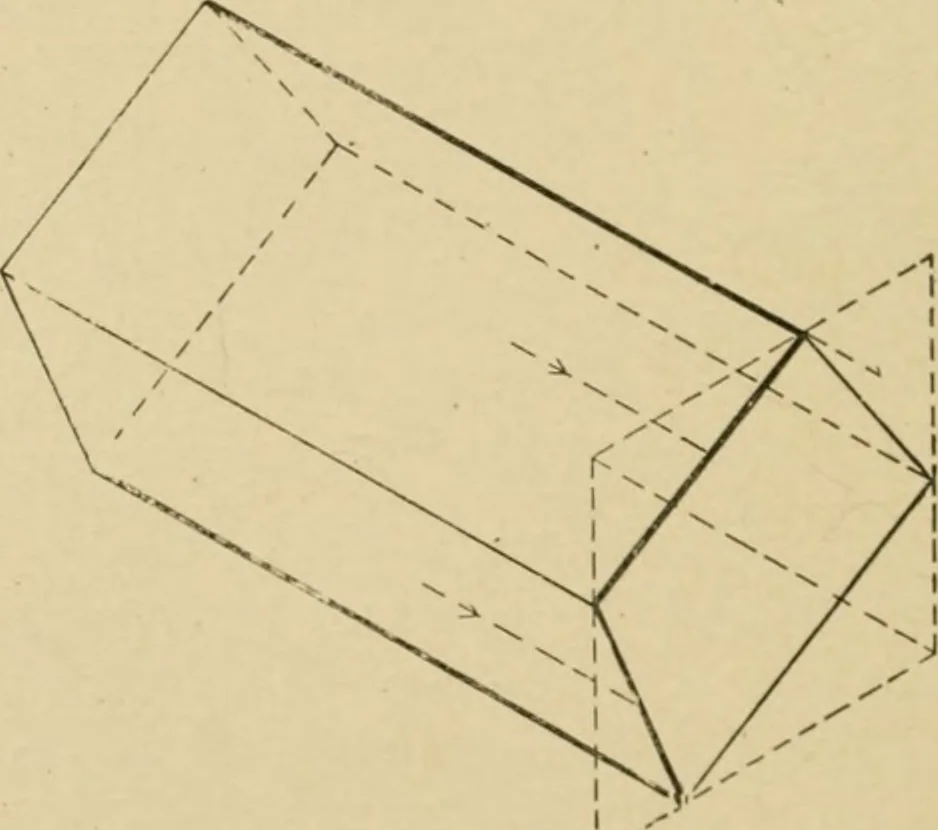

, as indicated by thedottal lines. In Fig. 57the isometric outline of ahouse is represented, show-ing a dormer window anda i)artial hip roof; « Z* is ahip rafter, cda valley. Lt>tthe pitch of the main roofbe shown at B, and let m bethe middle point of the toi3of the end wall of thehouse. Then,… … Fig. 54. 134 MECHANICAL DRAWING 43 the end roof be given at A. This shows that the peak of the roof,or the end a of the ridge, will be back from the end wall a distanceequal to the base of the triangle at A. Hence lay off from I thisdistance, giving point a, and join a with h and x.
