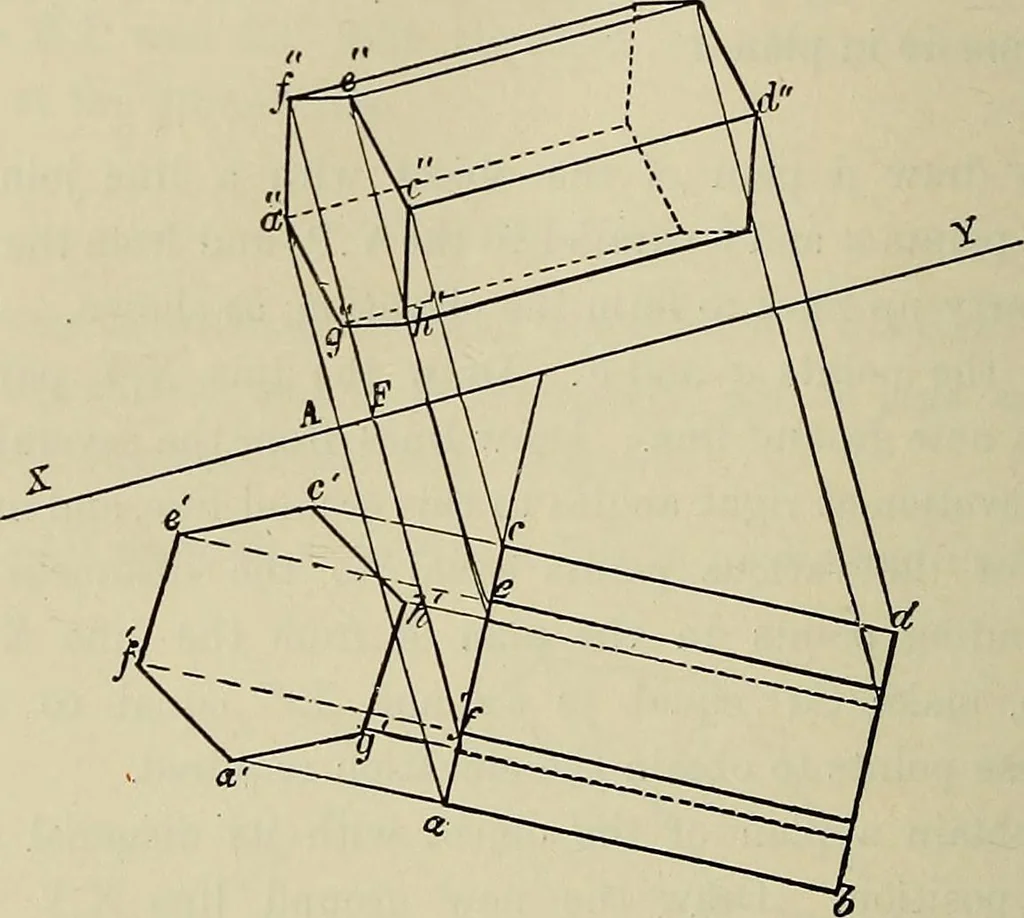

eoblem ^^. From the given ^projections of a solid {a hexagonal prism), toohtain other jprojections from them. Fig. 70. Let abed be the plan of the solid, and aghcef the end eleva-tion. Determine a new elevation raised above the H.P., with itslonger edges inclined to the V.P. at an angle of 27^.… … Fig. 70. of the various points in the end elevation from ac for theheights of the corresponding points above XY; for instance,make Aa equal to aa!, F/ equal to ff\ etc. By joining thesepoints we obtain the elevation required. Pkoblem 56. From the flan and elevation of a fyramid, to draw other…
