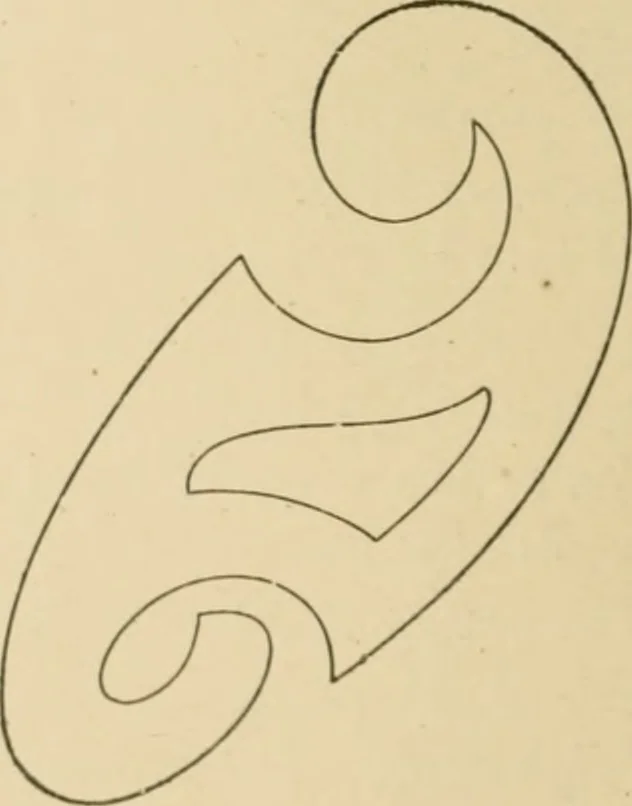

Fig. :}0. shown ni Fig. 30. This instrument is used for drawing curvesother than ares of circles, and both pencil and line pen can beused. To draw the curve, a series of points is first located andthen the curve drawn passing through them bv using the part ofii>e irregular curve that i)as8e8…
