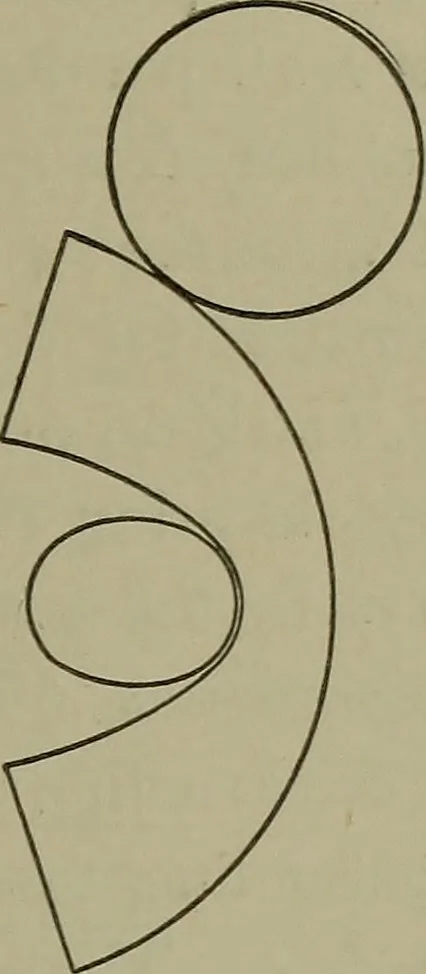

Name. Date. Fig. 24. The Orthographic Projection of the frustum of a cone. distance from the center of the cone to point C on the surfaceis equal to the radius C-X or C-Y of the circle cut by the planeX-Y; hence take the distance C-X or C-Y and lay it off on theline 4-C-10, as C-X and C-Y, which…
