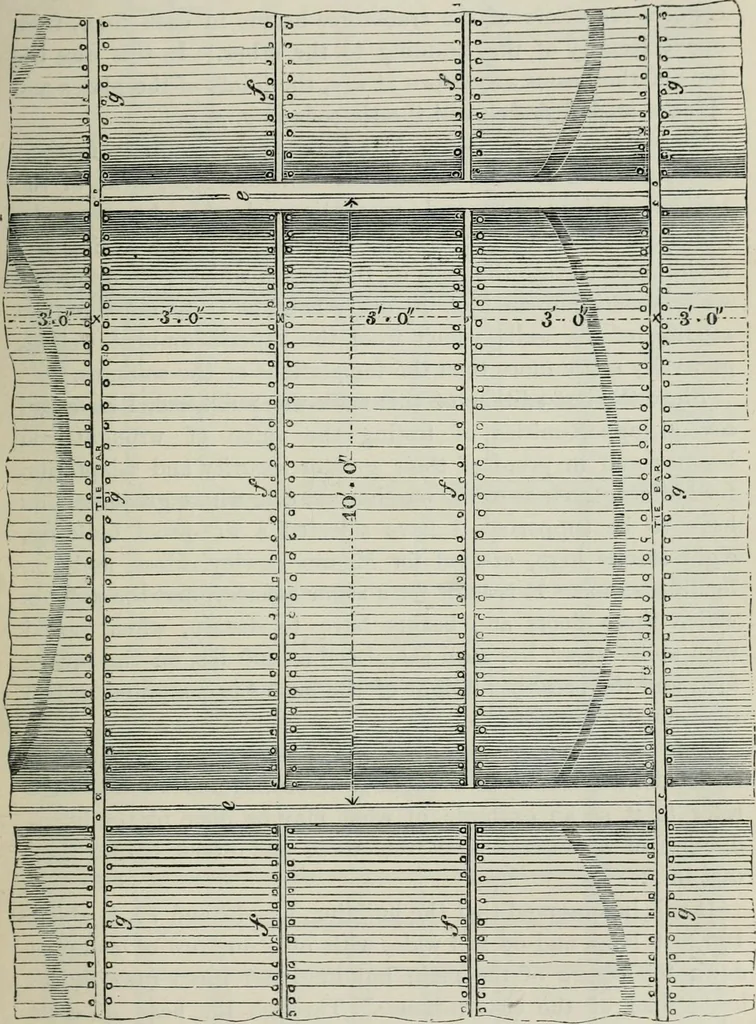

FlRE-rilOOF WAREHOUSES. 1G5 are built iu the side-walls and gable-end of the mill, arc riveted,as before stated, to the ends of the transverse beams which rest Fig. 72. … on the side-walls; and those along the gable are riveted to theends of the rods, as shown at d, d, d, &c. 166 OX THE CONSTRUCTION OF The connectious and positions of the arcli-platcs arc repre-sented in plan at %. 72, on a larger scale. It exhibits themethod of uniting the plates by rivets to…
